Gain the benefits of our proven, patented SpiralTrac™ technology in an easy-to-install adaptor for your mechanical seal. The SpiralTrac™ Seal Adaptor comes in six configuration options

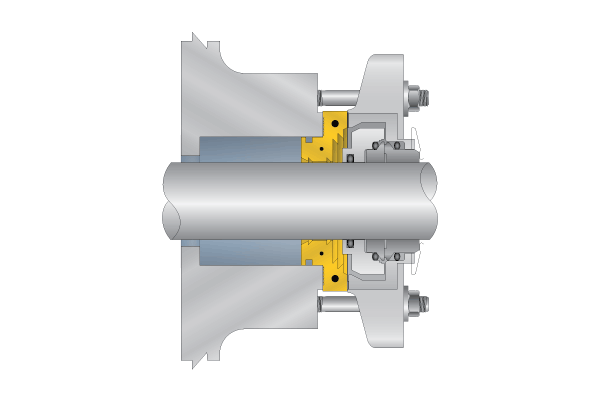

Option 1

option-1-image

Pre-machined groove for optional O-Ring.

Option 2

option-2-image

Longer flange to allow the seal to be moved away from any worn areas on the shaft.

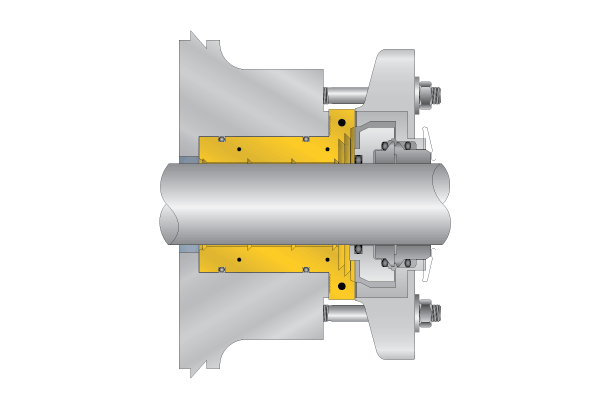

Option 3

option-3-image

Extended nose piece fills the seal cavity and allows the particulate to be expelled at the throat.

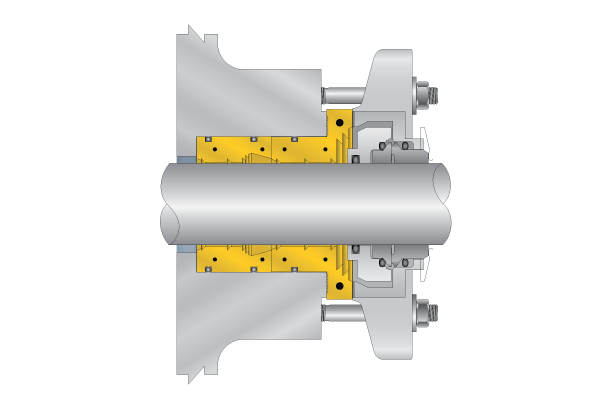

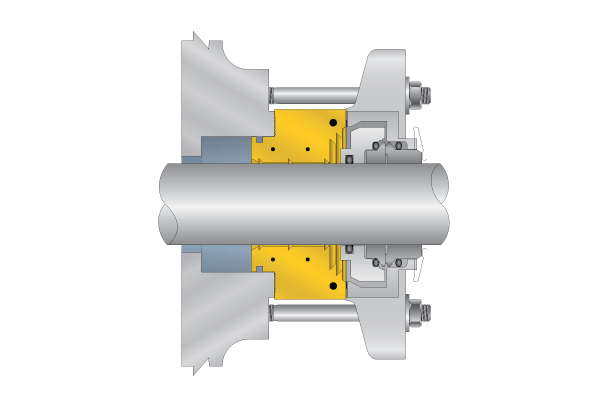

Option 4

option-4-image

Extended nose piece fills the seal cavity and allows the particulate to be expelled at the throat. Two pieces to provide for short distance to first obstruction.

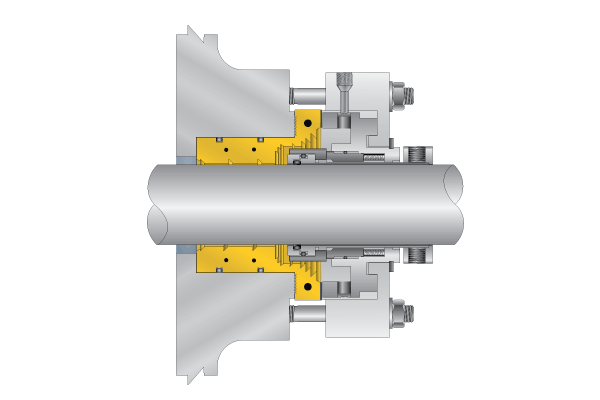

Option 5

option-5-image

Extended nose piece fills the seal cavity and allows the particulate to be expelled at the throat. Extended from chamber to allow for cartridge seals.

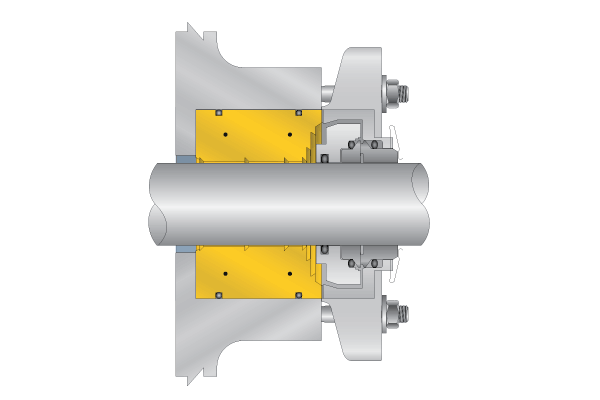

Option 6

option-6-image

No Flange. Used to fill large cross-section of big-bore box allowing for standard seal installation. Fills the seal caviy and allows the particulate to be expelled at the throat.

Frequently Asked Questions all FAQs

The split device made of ESC material has been pressure tested to 100 PSI / 6.9 Bar. The typical applications for the Adaptor are well within this limit. Should you have a higher-pressure application and still require a split device, contact EnviroSeal.

The two halves are machined to a smooth finish to ensure total face contact when tightened together with the socket-head cap screws that are supplied with each device. Split metal Adaptors are supplied with a gasket sealant which should be applied for each half.  Refer to installation instruction for details.

No, these SpiralTracs are not designed to work with packing.

The turbulence in the seal cavity will not be changed with the standard Adaptor. What is important is to protect the environment around the seal itself, and that is achieved with this design. An option, should you wish to control the turbulence in the seal cavity, is to order the Adaptor with a nose piece that will fill the entire void of the seal cavity. It is important to note that this option can be used only when there is enough first obstruction space available.

Typically, hard face seal combinations are used when erosive solids are present in the seal cavity.  With SpiralTrac, however, solids are no longer present in the cavity.  Since the seal is now operating in a cleaner environment, soft face seal combinations can be used at substantially reduced costs.  Soft face seal combinations will also run cooler, further extending the mechanical seal’s life.  Contact your seal manufacturer for recommendation.

No. We recommend to use flush with all SpiralTrac Adaptors.

SpiralTrac Adaptor can be your answer when:

  • Box bore too big/small (for gasket of seal)
  • Bolt pattern too big/small (for seal mounting)
  • Shaft wear (moving seal closer to clean part of shaft, closer to bearings)

Split SpiralTrac Adaptors are available in ESC and metal.

Composite Adaptors have a built-in gasket. For metal Adaptors customer must supply their own gasketing material.

Ask an Expert

Sample Success Stories Seal Adaptor

st seal adaptor in the chemical industry cover

ST Seal Adaptor in the Chemical Industry

Solution: seal
Application: HVAC Dept
Equipment: Split Case Ingersoll Rand Pump

View
flushless and leak free vertical turbine with st seal adaptor cover

Flushless and Leak Free Vertical Turbine with ST Seal Adaptor

Solution: seal
Application: River Water
Equipment: Voith Siemens Vertical Hydro Turbine, Chesterton 442 Seal, SpiralTrac Seal Adaptor ESC

View
st seal adaptor, chesterton 442 in the pulp & paper industry cover

ST Seal Adaptor, Chesterton 442 in the Pulp & Paper Industry

Solution: seal
Application: Pulp
Equipment: Valmet S-0338 Horizontal Pulper

View

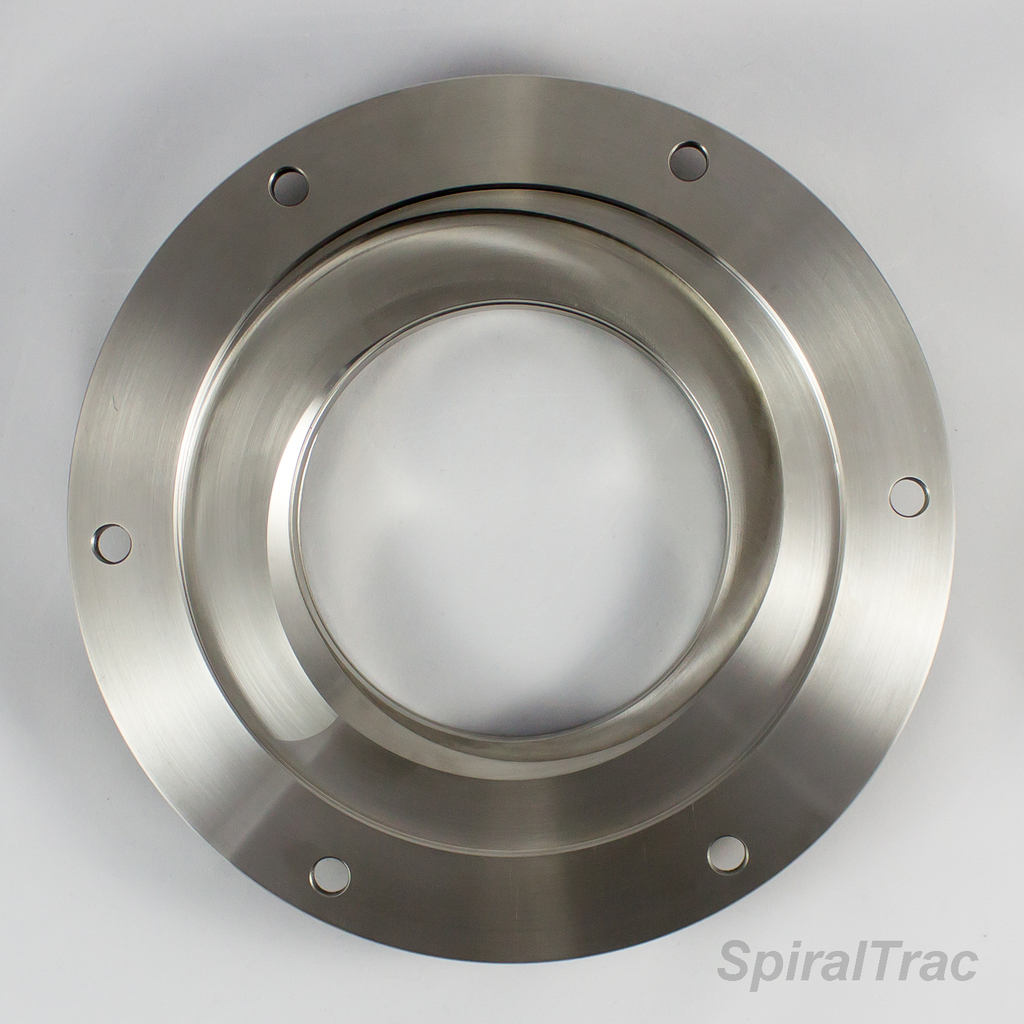

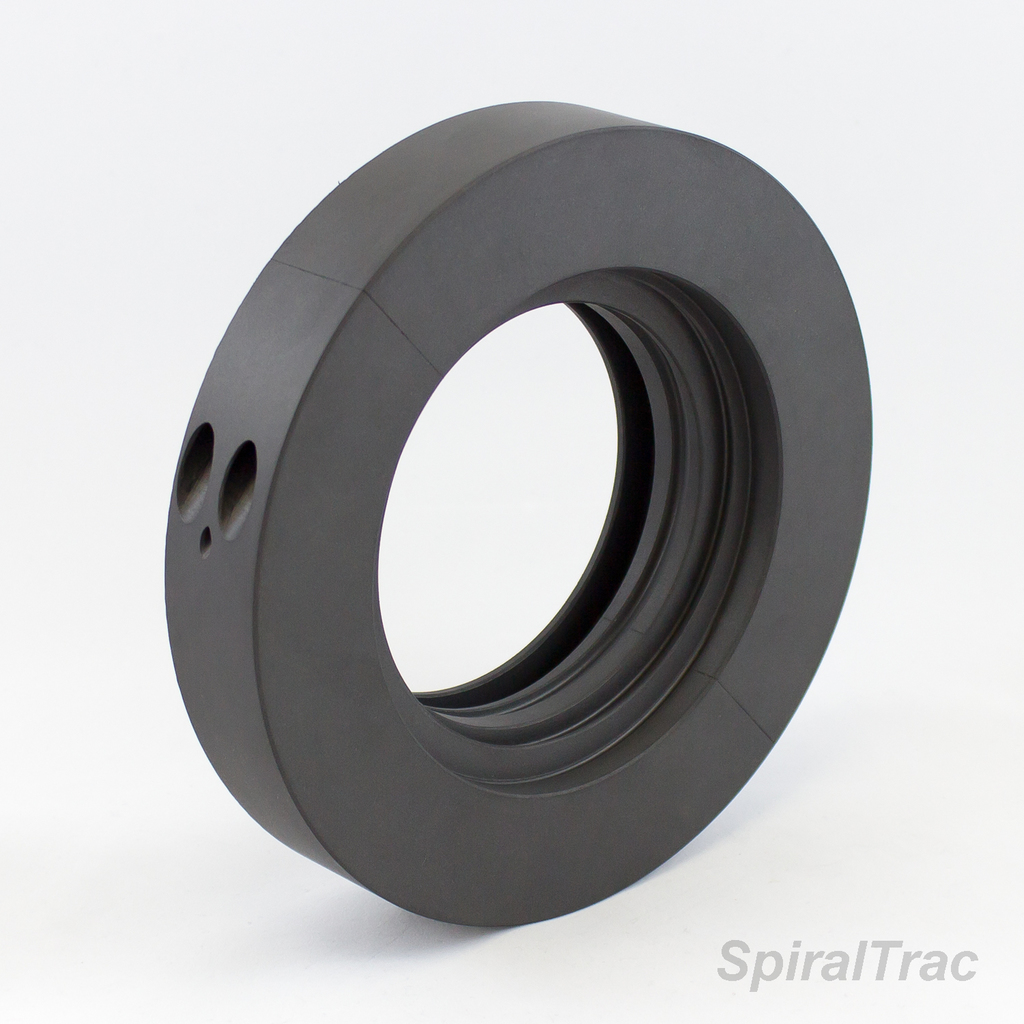

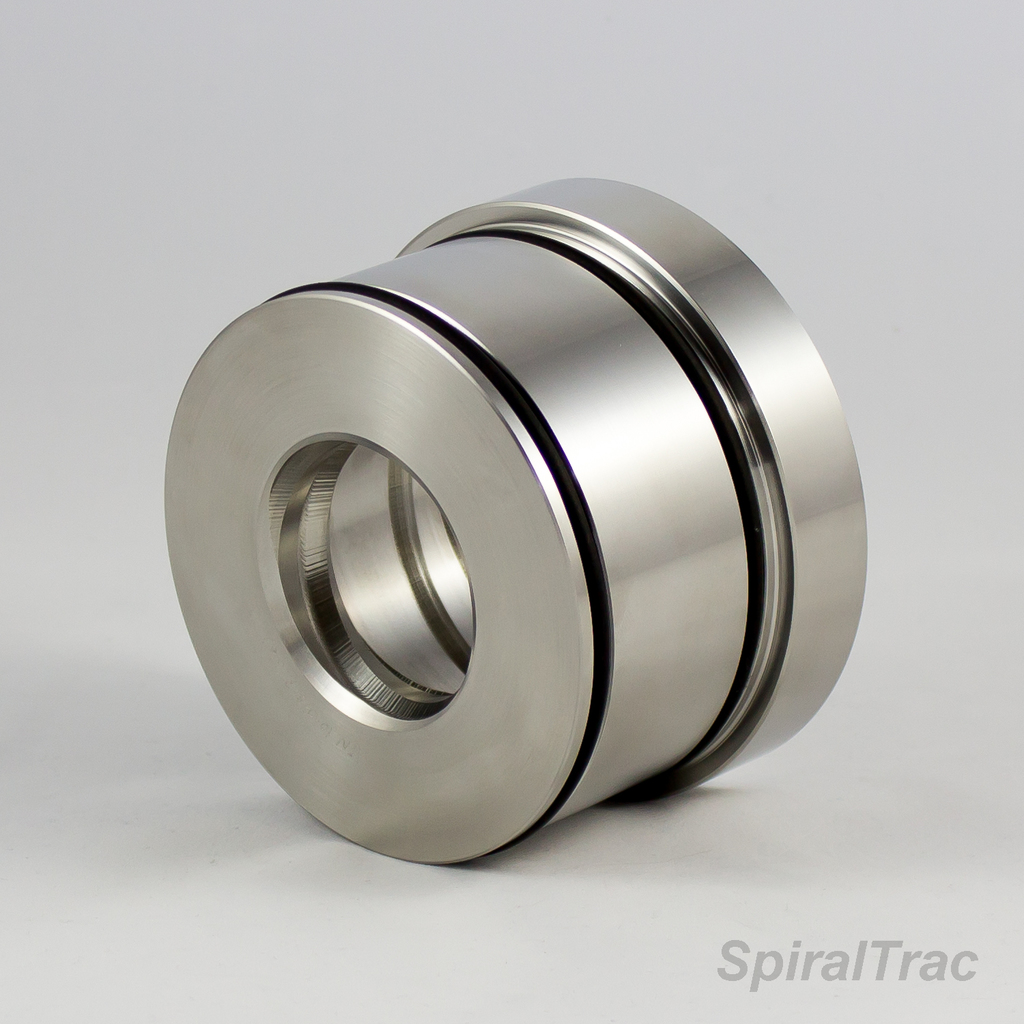

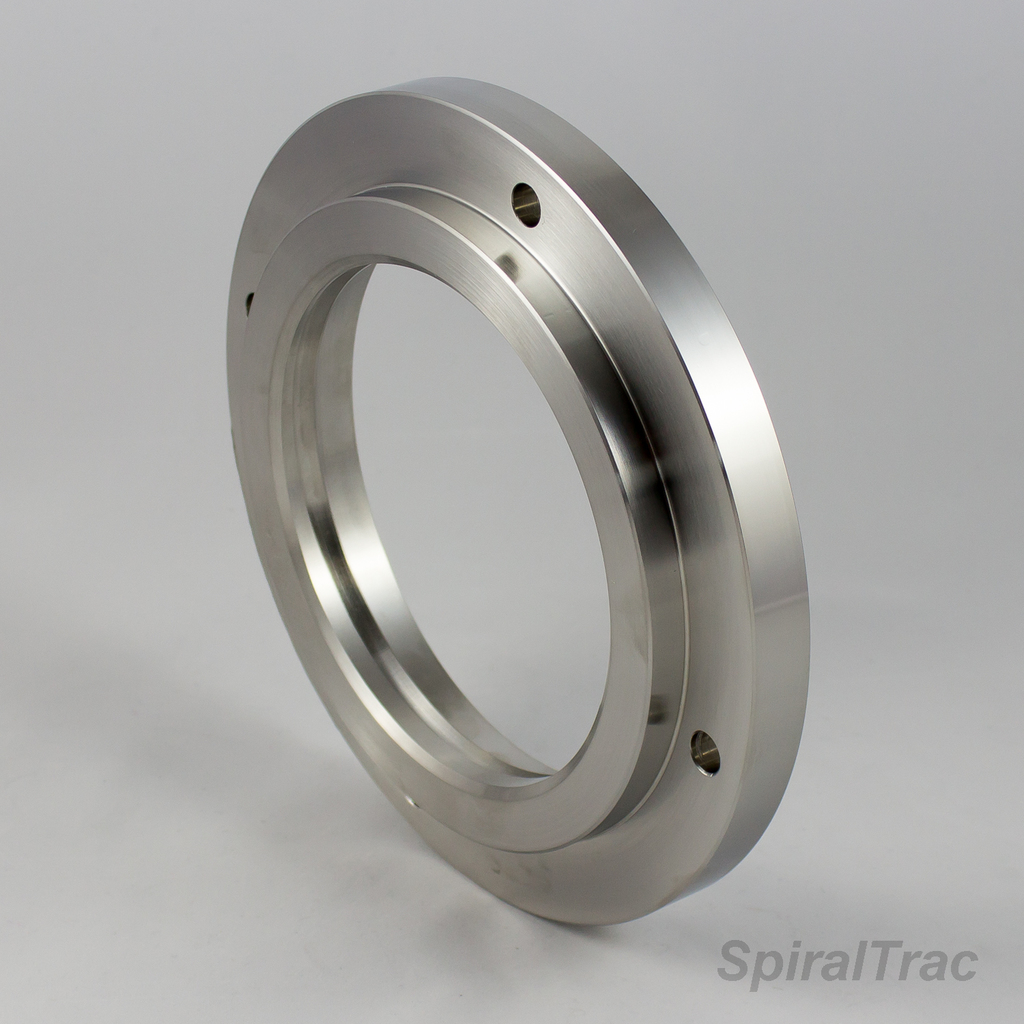

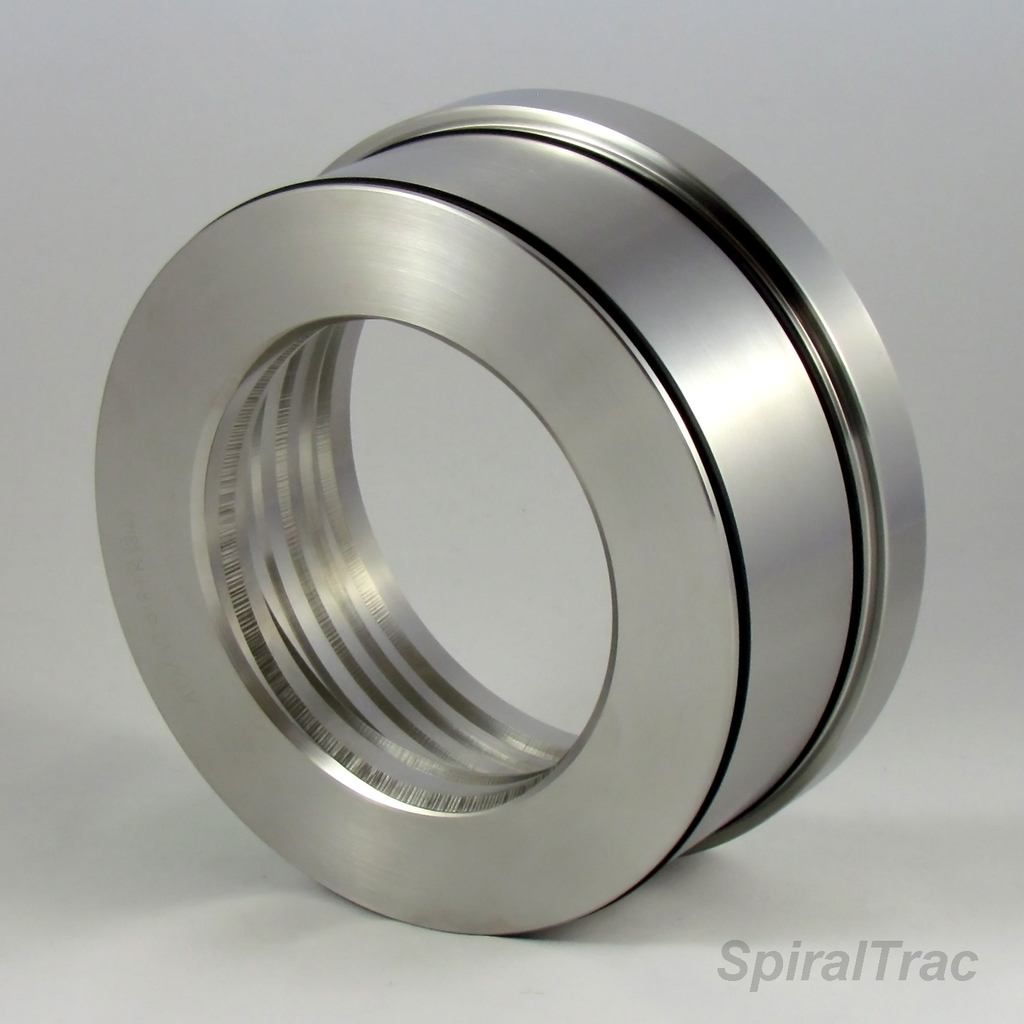

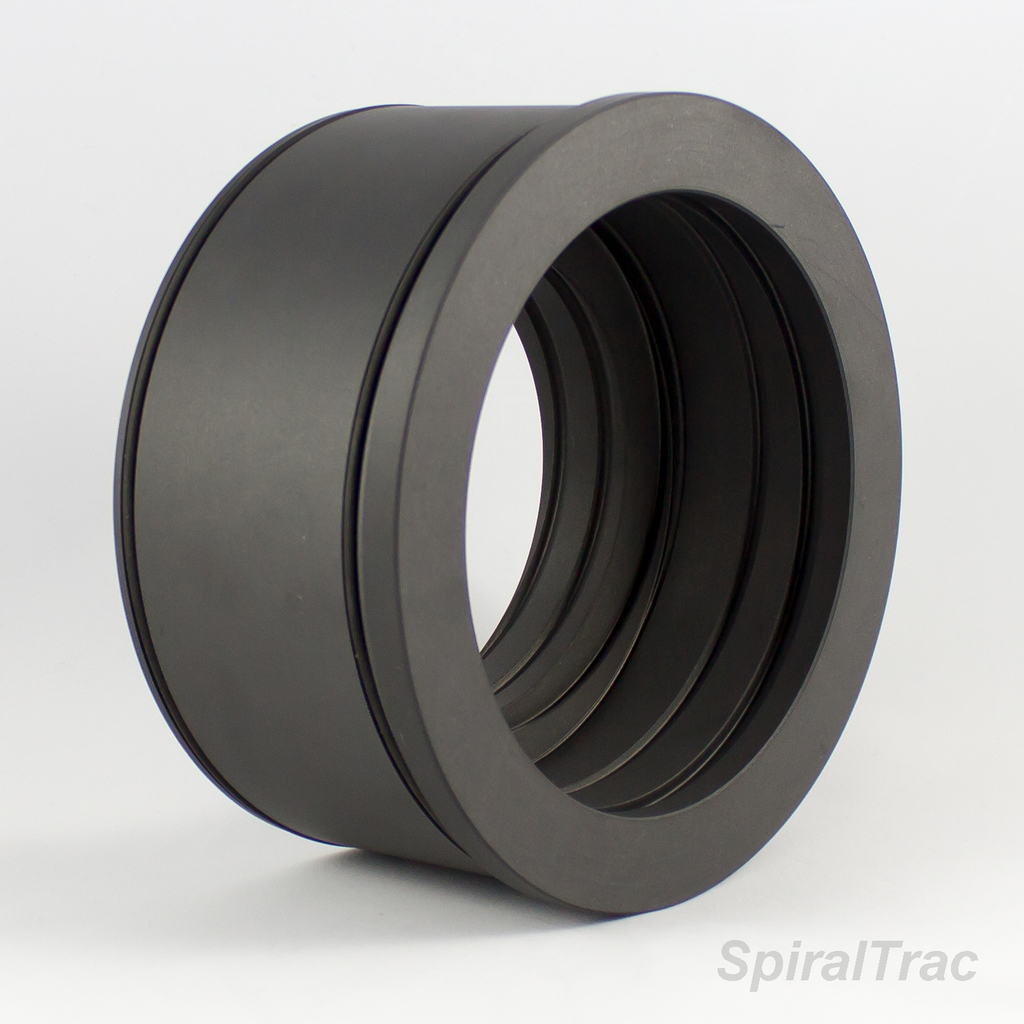

Seal Adaptor Device Gallery

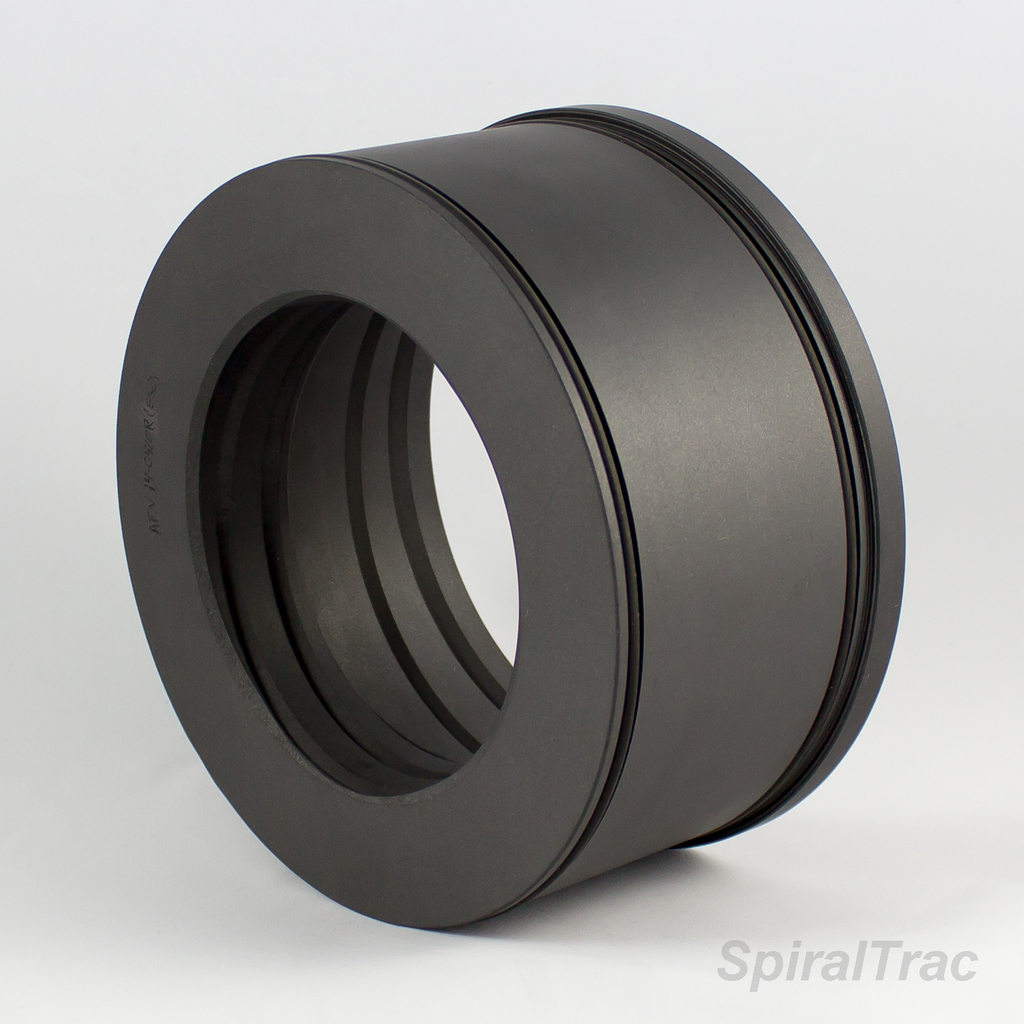

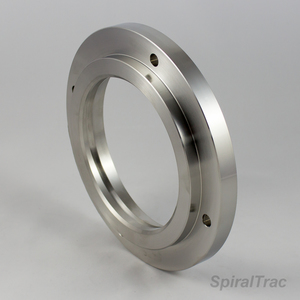

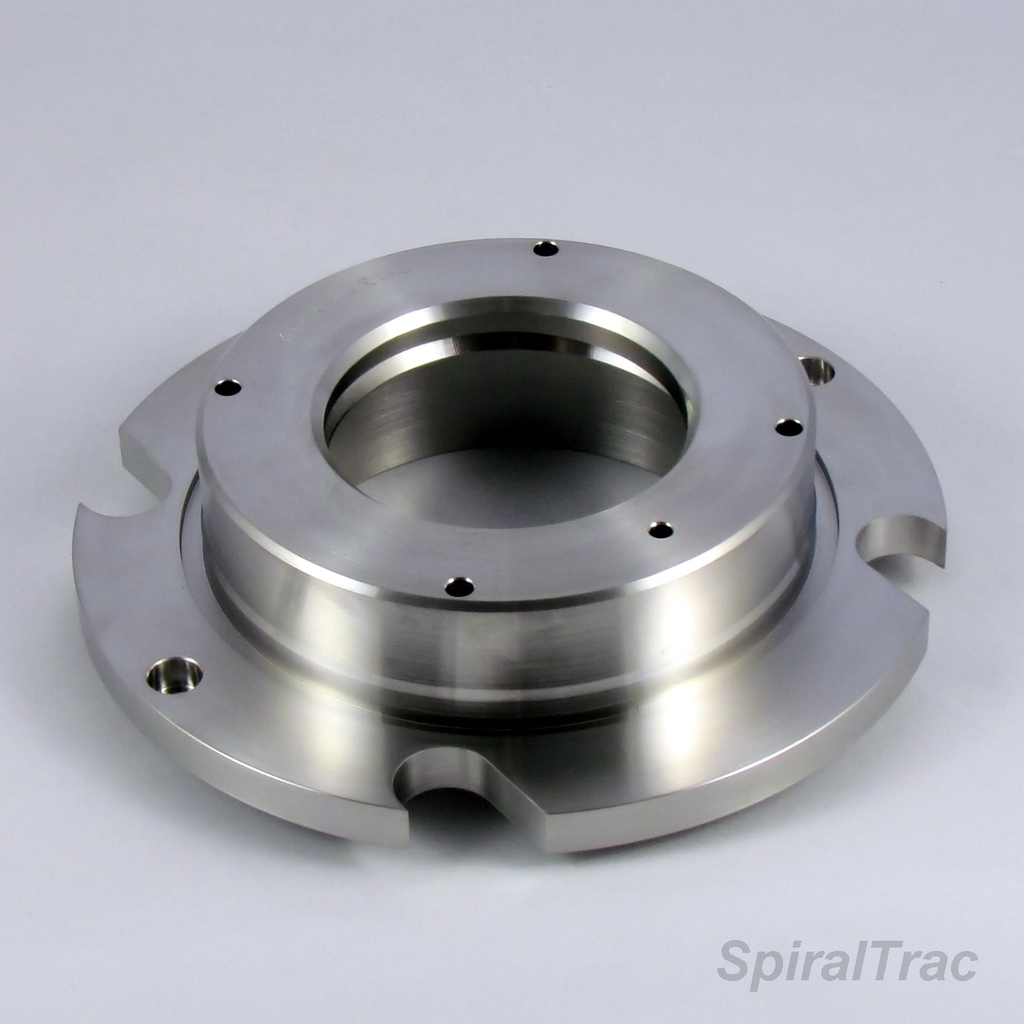

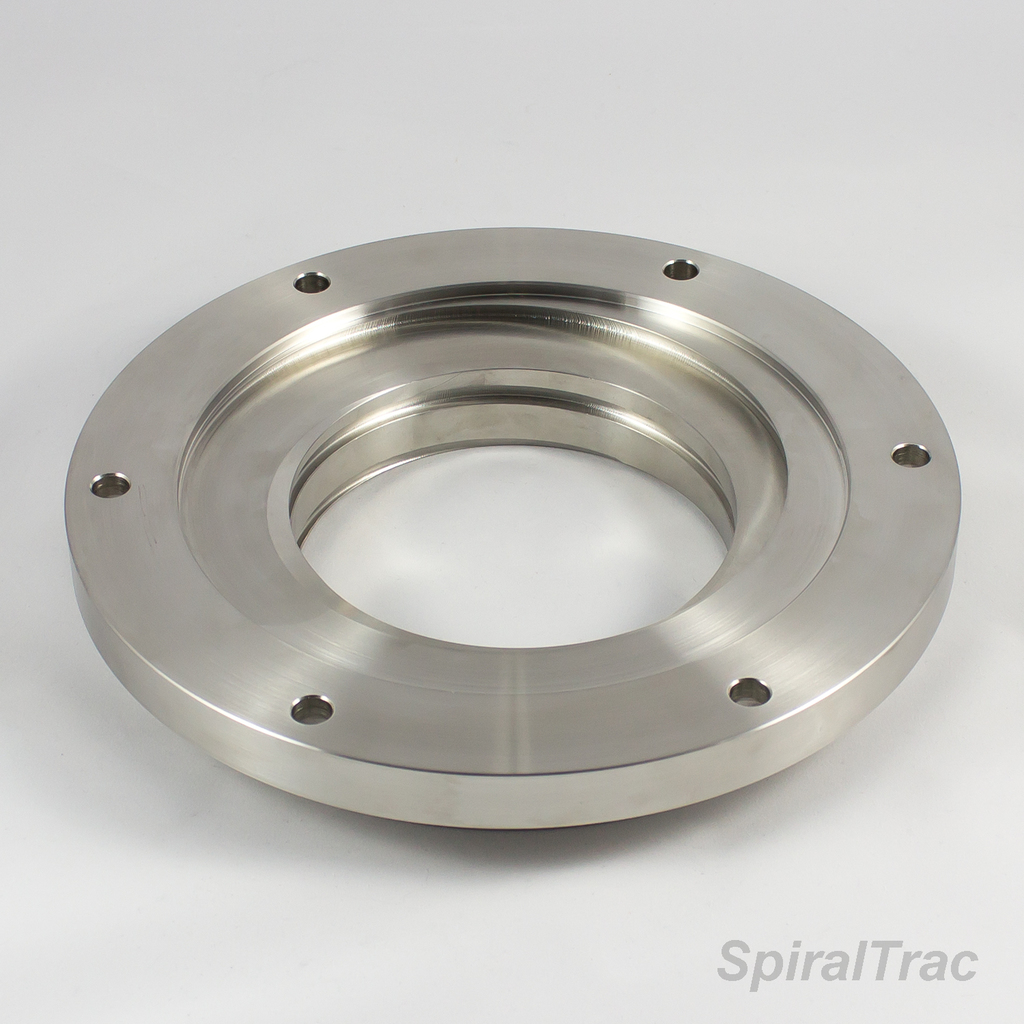

Right Oblique-thumbnail
Top-thumbnail

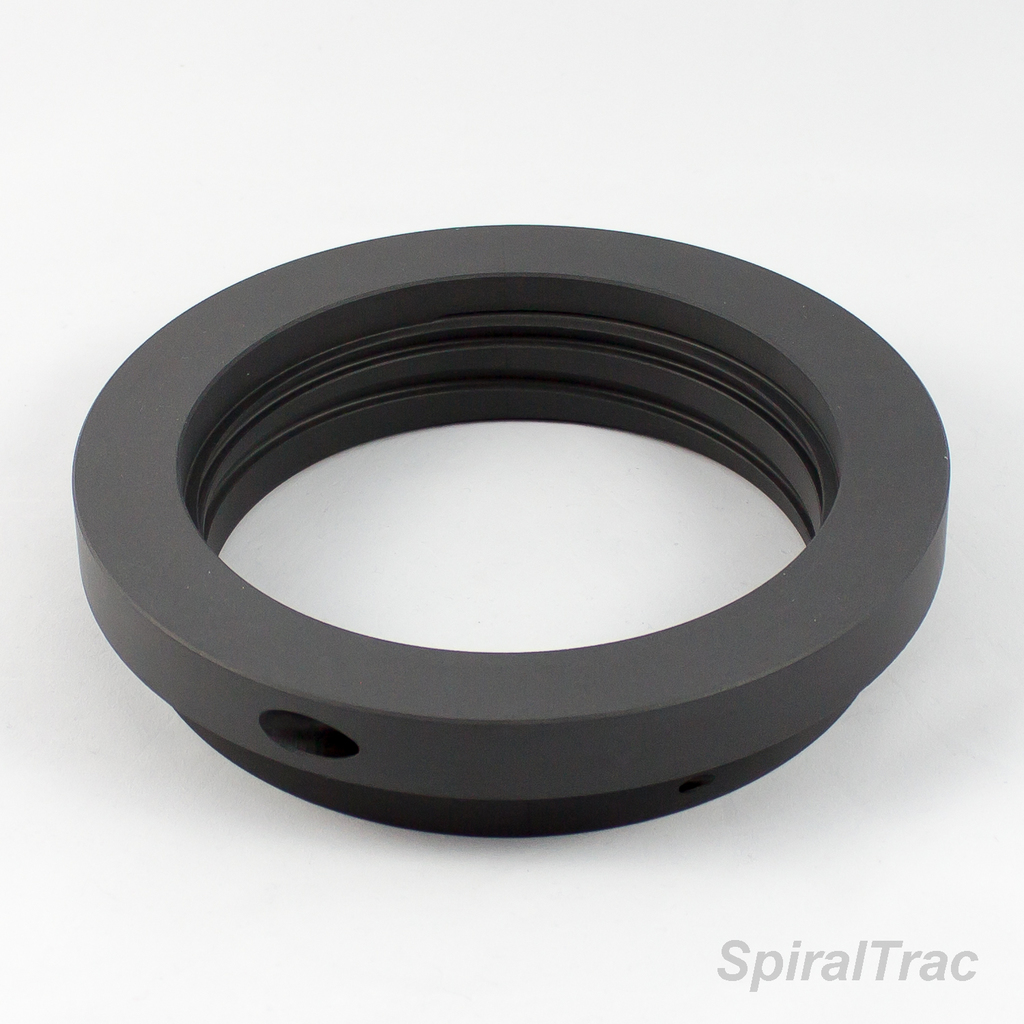

ST top 1-thumbnail

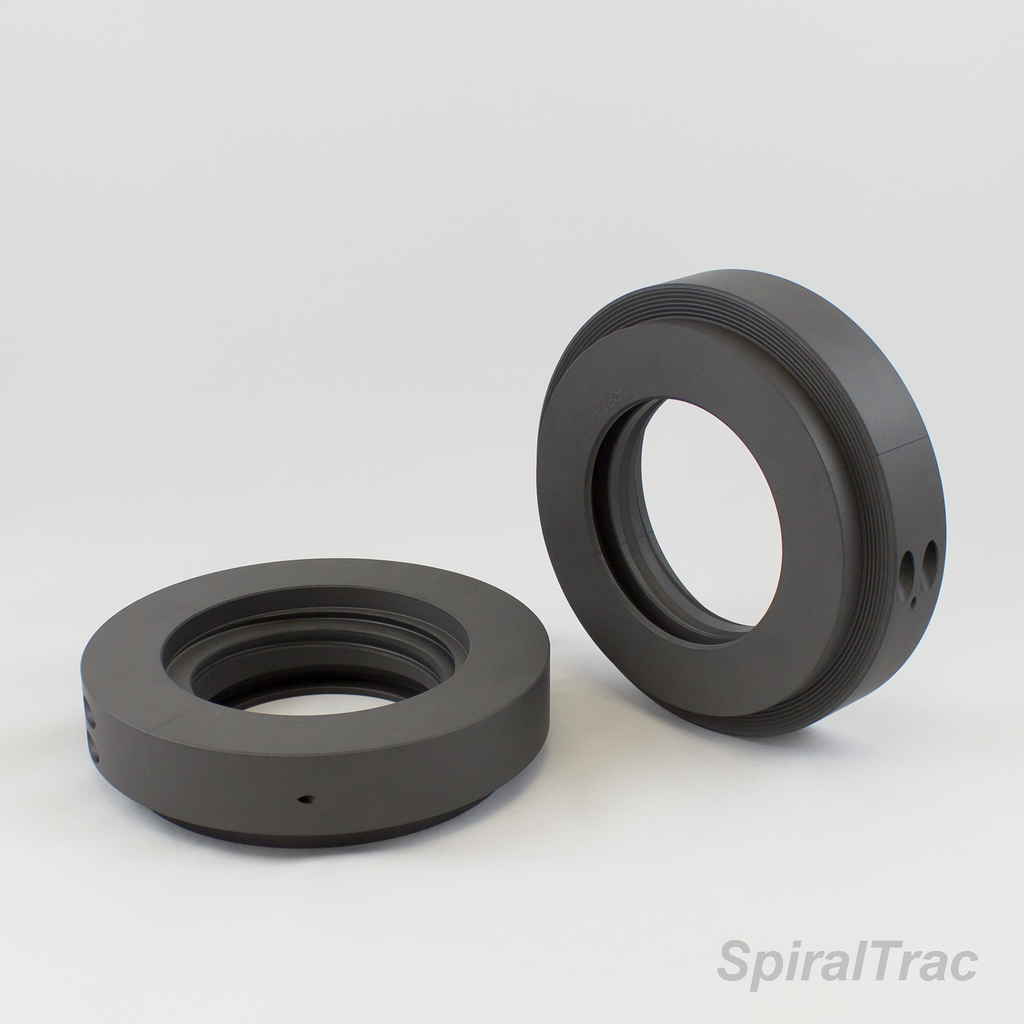

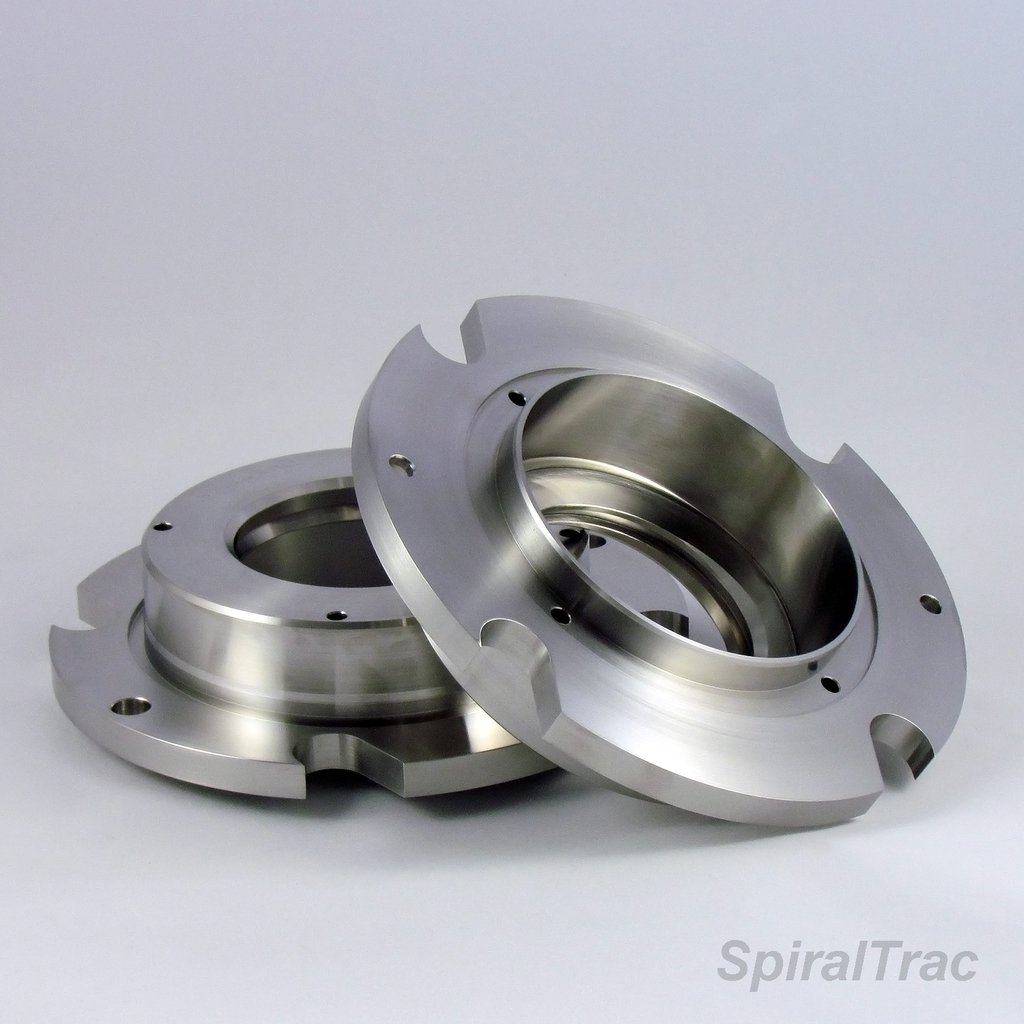

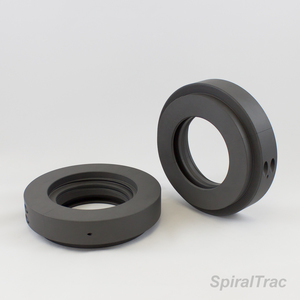

Group 1-thumbnail

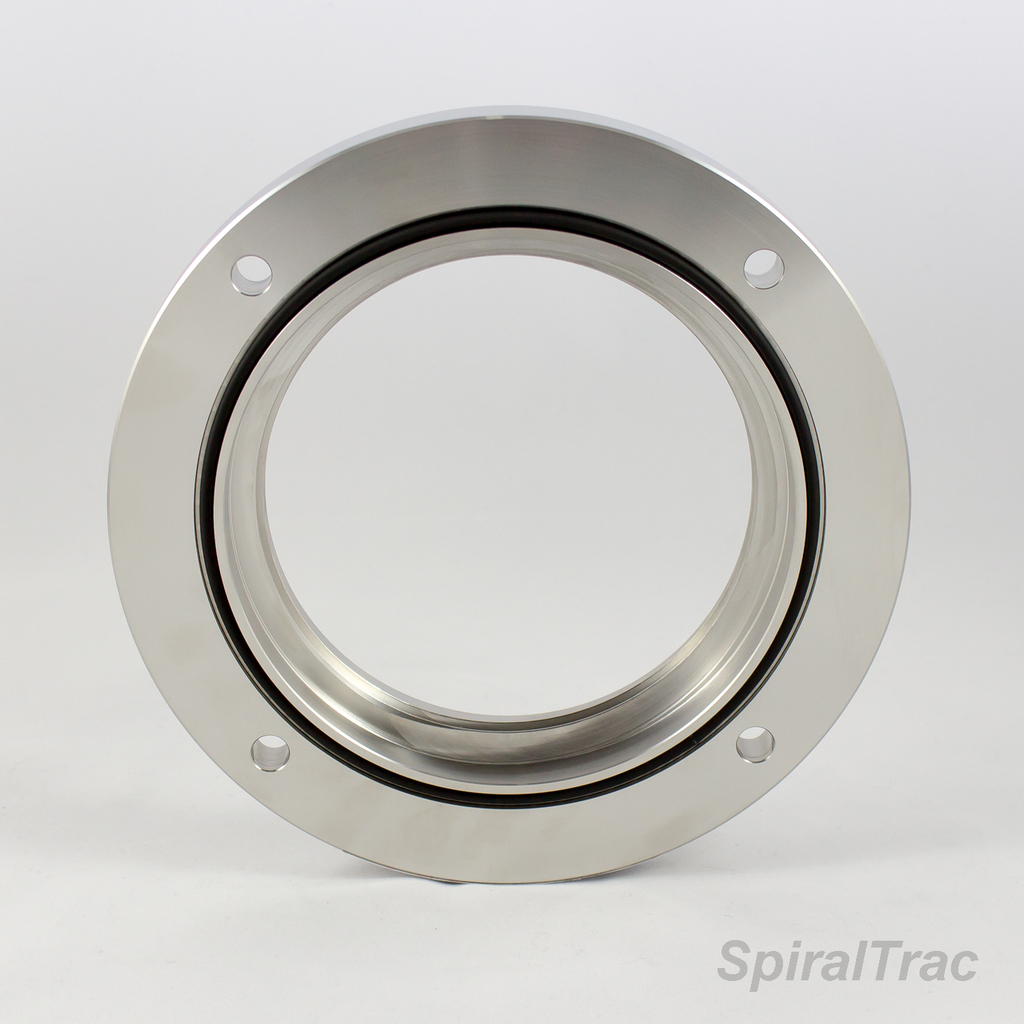

Front-thumbnail
Group 1-thumbnail
Right Oblique 2-thumbnail
Left Oblique-thumbnail
Front-thumbnail

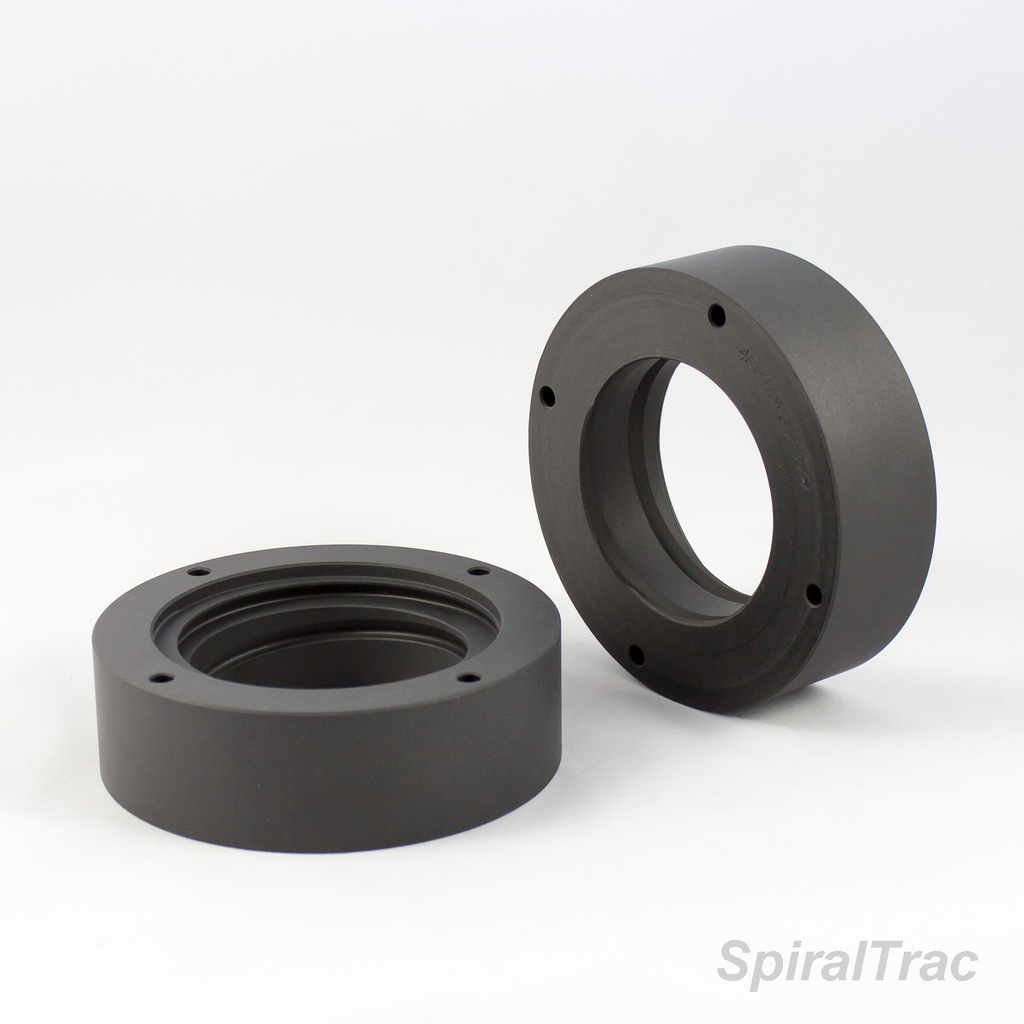

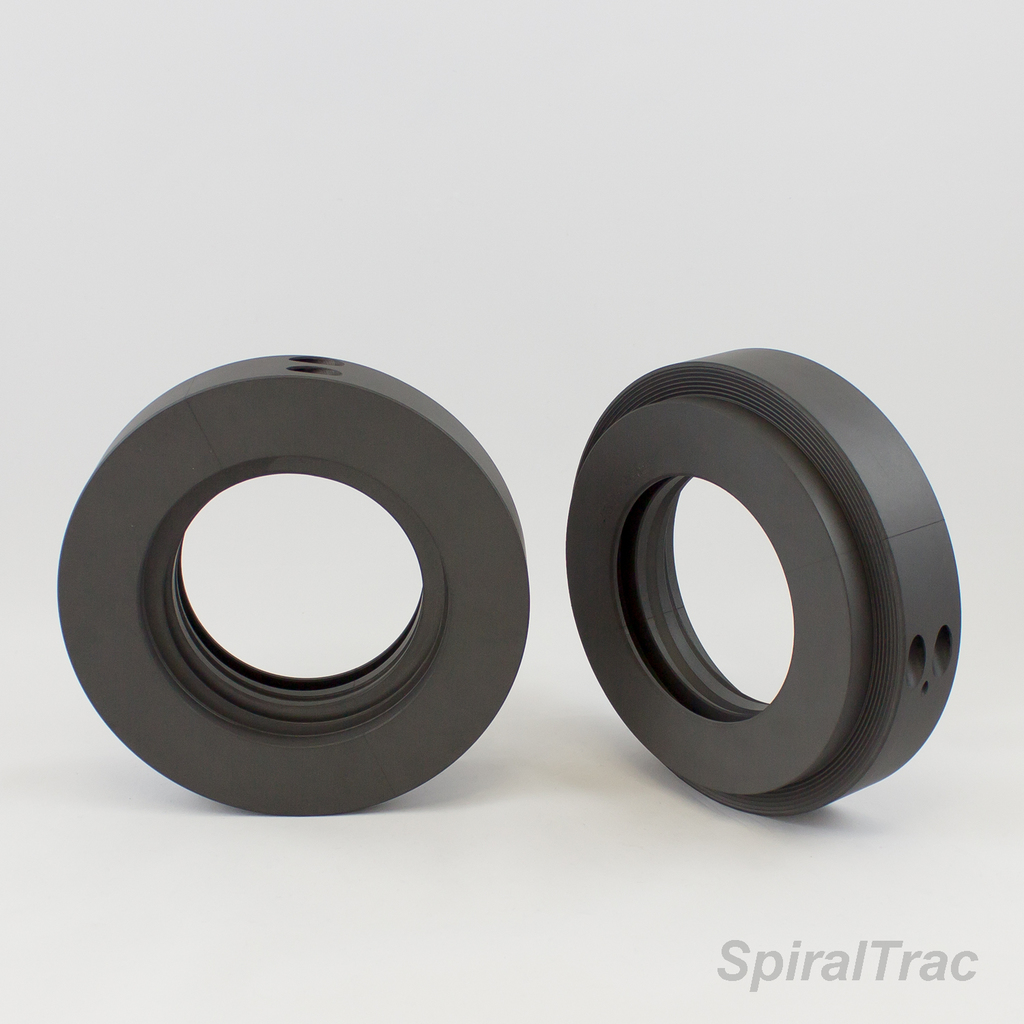

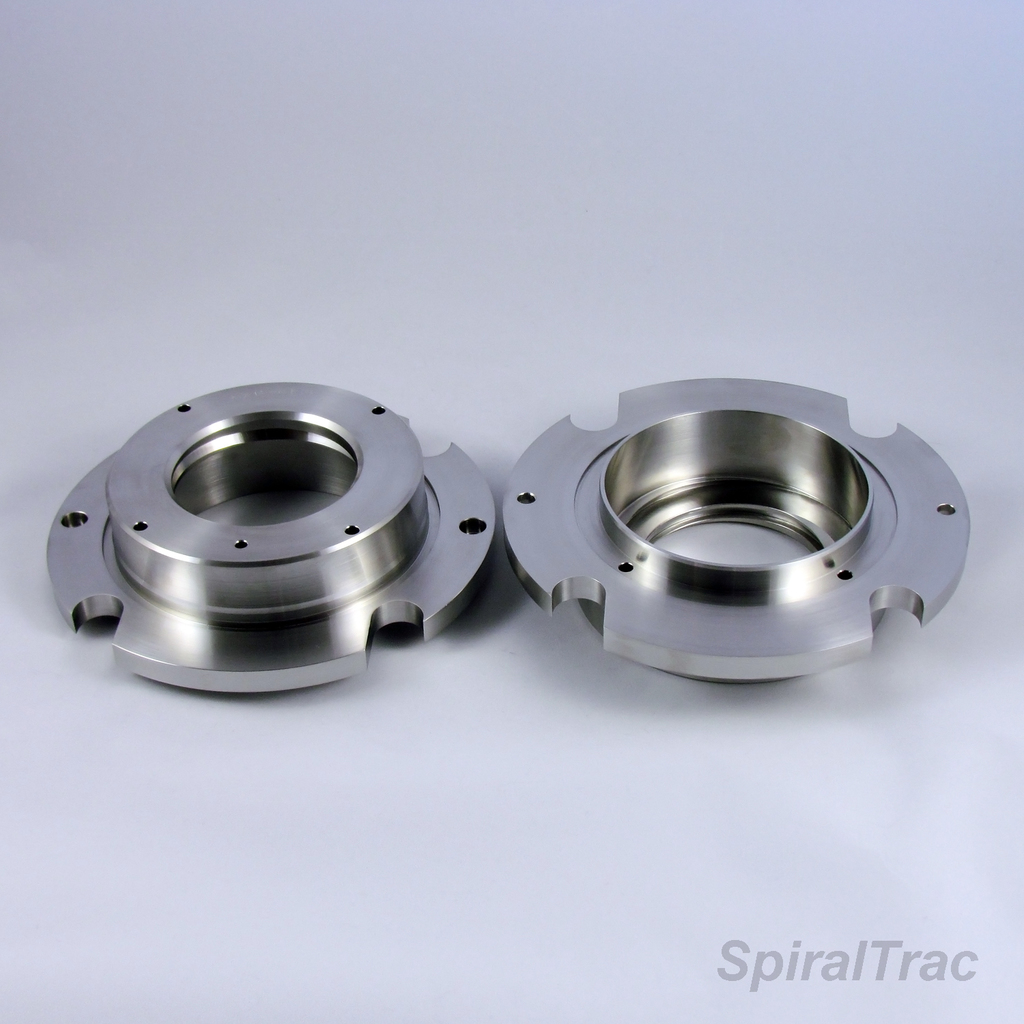

Group 2-thumbnail

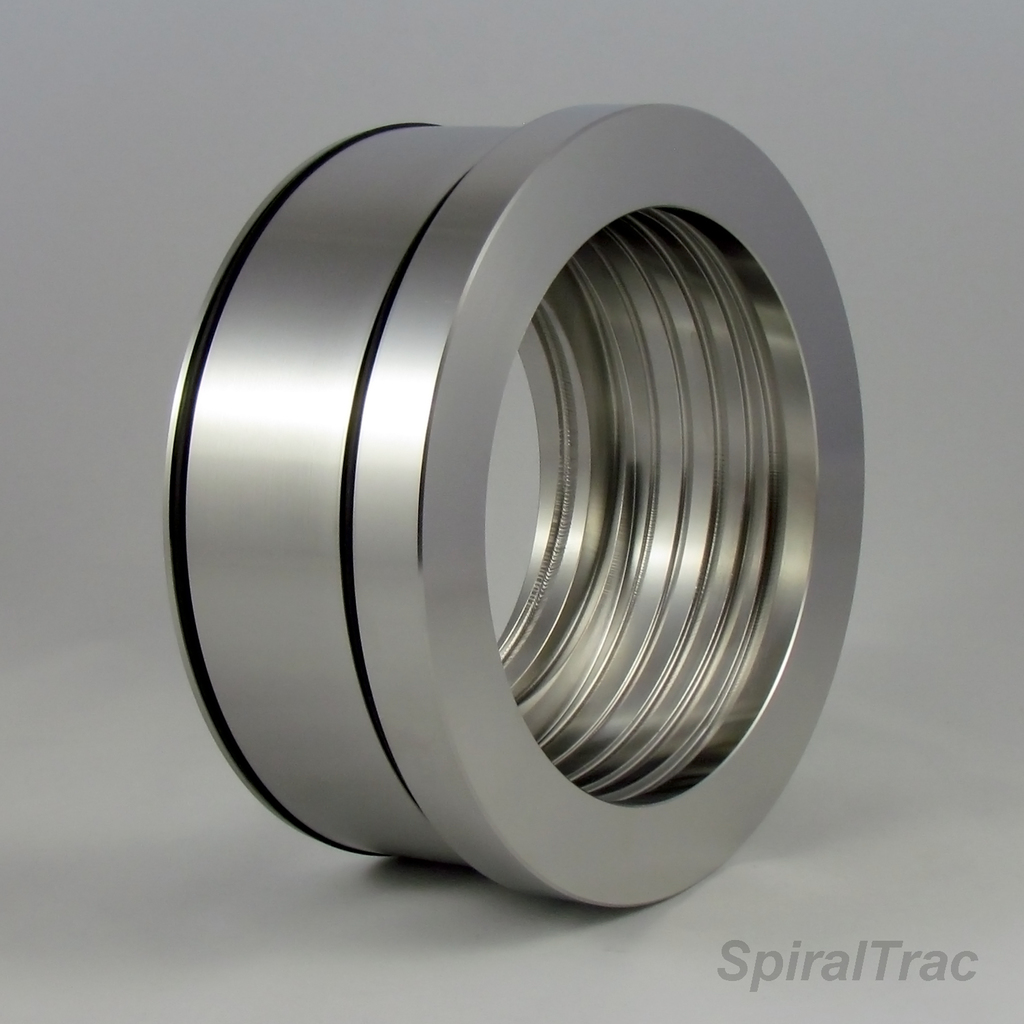

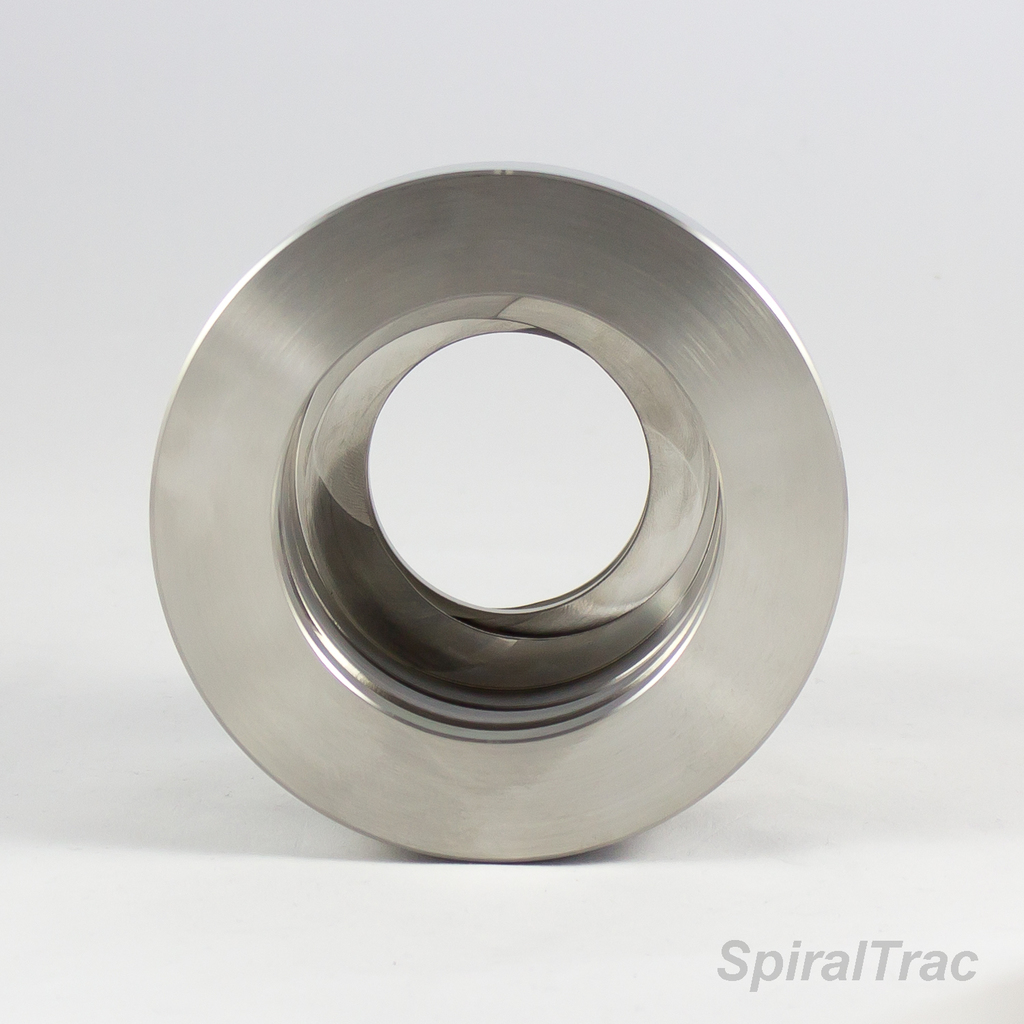

ST front 1-thumbnail

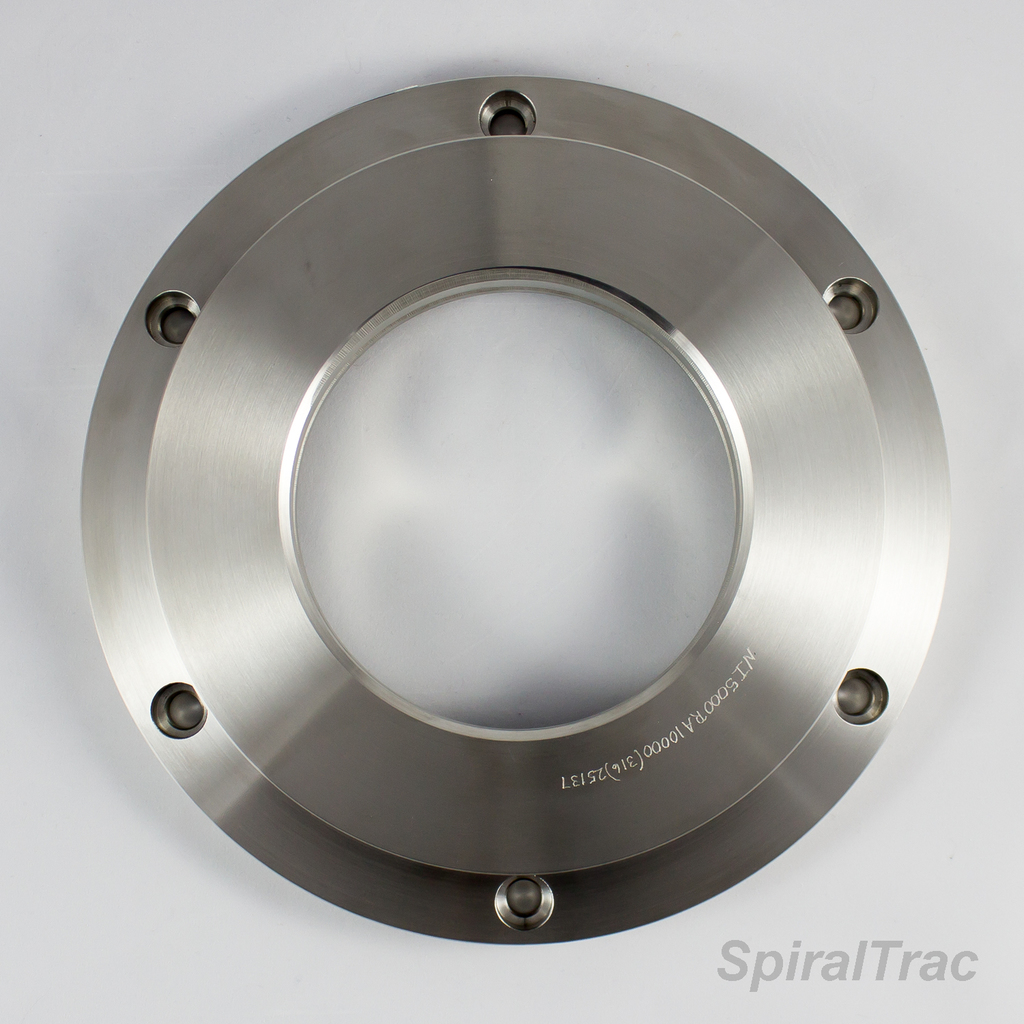

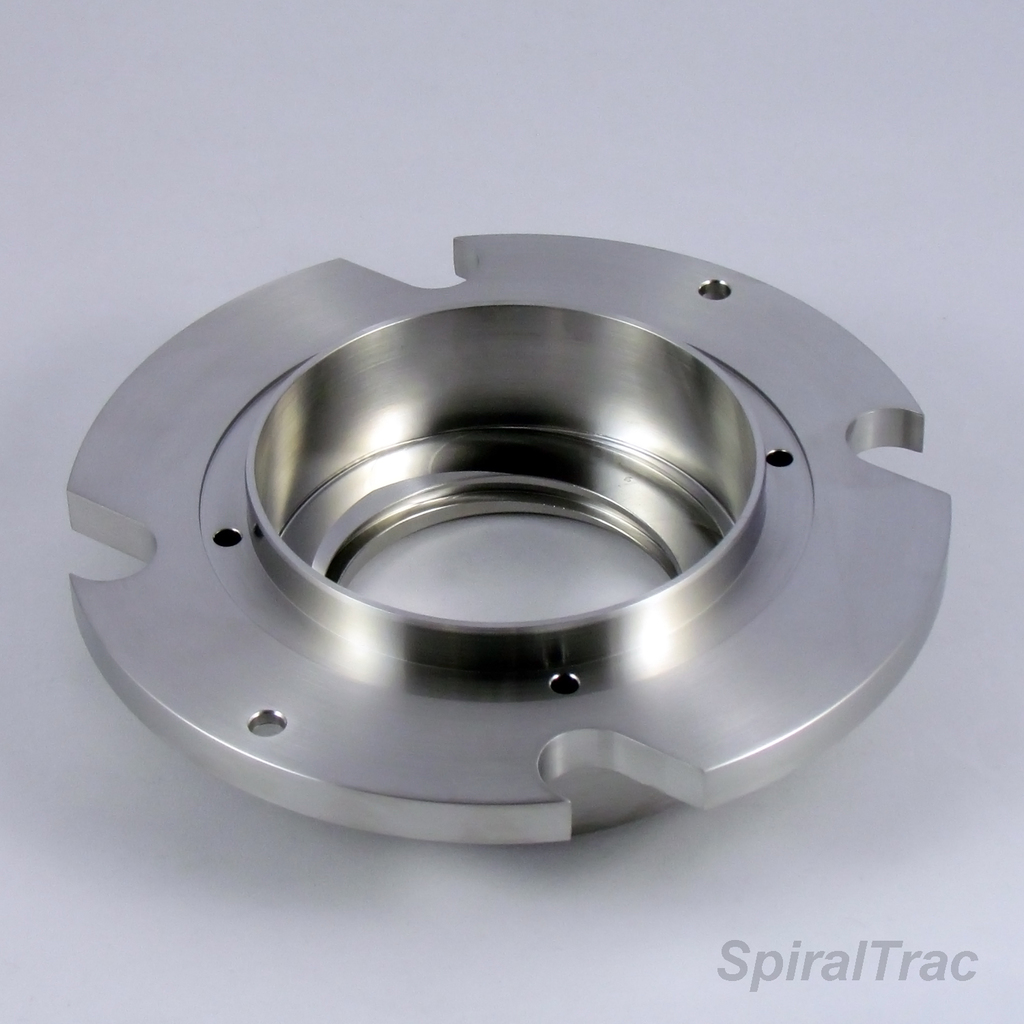

ST top 2-thumbnail
