SpiralTrac™ in the chemical processing industry

SpiralTrac™ in the chemical processing industry

SpiralTrac is a revolutionary environmental controller for seal and packing chambers, and has established new standards worldwide for exploiting the maximum performance potential of rotating process equipment in the chemical industry.

What does it do?

A SpiralTrac Enhanced Environment increases the sealing element life, while decreasing flush and product leakage at the same time.

What applications?

Typical municipal industry application include slurries and clean or contaminated liquid processing. Listed below are some industry sample applications where SpiralTrac has been proven. For more detailed stories, find our Chemical Processing industry successes in the library.

SpiralTrac Application Solution Equipment
Version N Type A Zinc Sulfate seal Envirotech 405-80 PC
Version N Type B Kevlar and Nomex Process packing Goulds 3175 S
Version N Type B Ferric Chloride seal Goulds 3196 MT/3196 XLT
Version N Type B Phosphates seal Morris Elbow
Version F Type S Resin Solution seal Dickow MCI
Seal Adaptor HVAC Dept seal Ingersoll Rand split case pumps
Version D Hydrochloric Acid seal Mission pump
Version D Type A Acetate seal Slushing pump
Version C Type I Chemical Waste Water packing Allis Chalmers
Version P Salt Brine packing Warman 10 x 8
Version P Waste Water packing Wemco 8x6x17 F Torque Flow
Version P Brine Sludge packing Ingersoll Rand 4-CORVL
Version P Brine (24% NaCl) packing Durco Mk II Group I

Typical Pump Types

  • Begemann
  • Bingham
  • B-J
  • Chesterton
  • Dickow
  • Durco
  • Envirotech
  • Goulds
  • Ingersoll Rand
  • Morrios
  • Union
  • Warman
  • Wemco

Sample Success Stories in the chemical processing industry List All

st seal adaptor with chesterton 440, 1210 in a chemical plant cover

ST Seal Adaptor with Chesterton 440, 1210 in a Chemical Plant

Solution: seal
Application: Hydrochloric Acid
Equipment: Model A-70 Mission Pump, 440 Rotary Seal, 1210 Stationary Seal, Flow Guardian, SpiralTrac Seal Adaptor

st version c with chesterton gss seal in the chemical industry cover

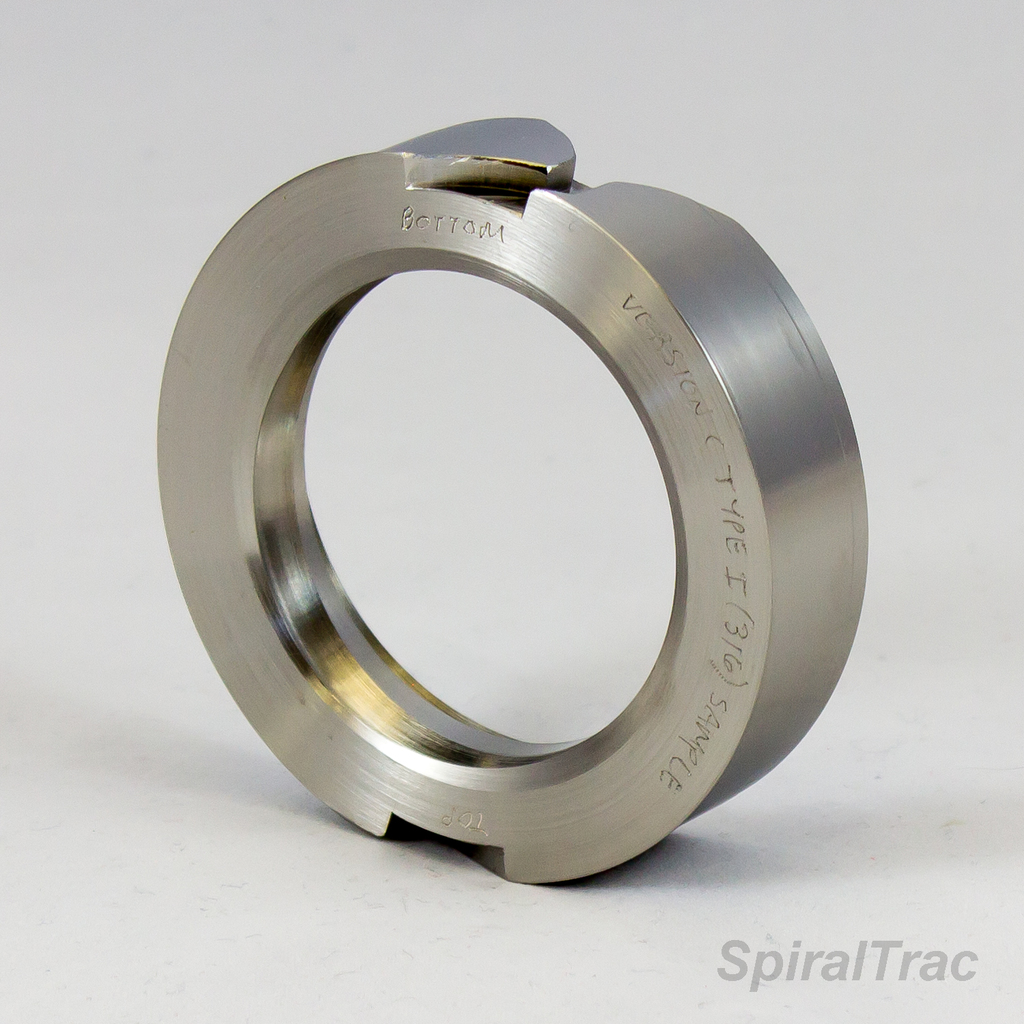

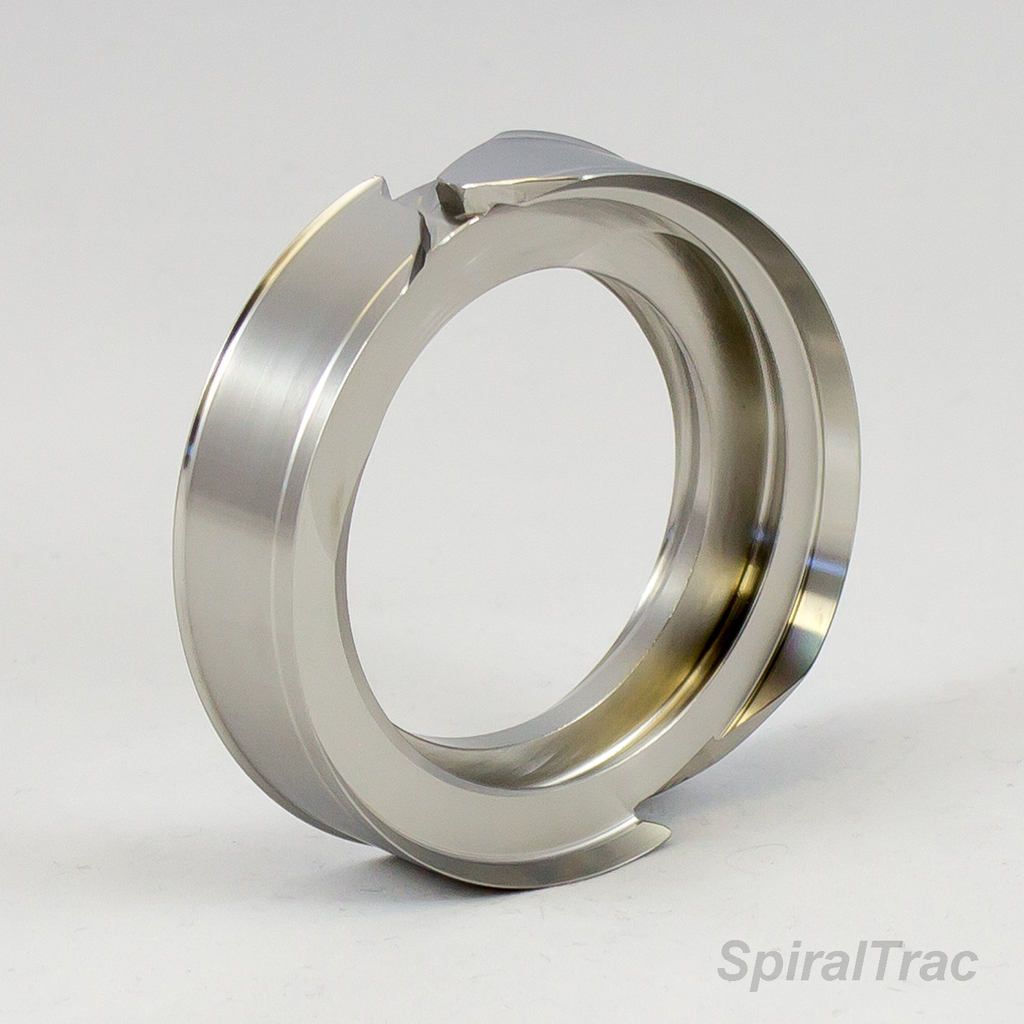

ST Version C with Chesterton GSS seal in the Chemical Industry

Solution: seal
Application: Chemical Waste Water
Equipment: Allis Chalmers pump

st version p with chesterton 1730 packing in the chemical industry cover

ST Version P with Chesterton 1730 packing in the Chemical Industry

Solution: packing
Application: Salt Brine
Equipment: Warman 10x8 ESC pump

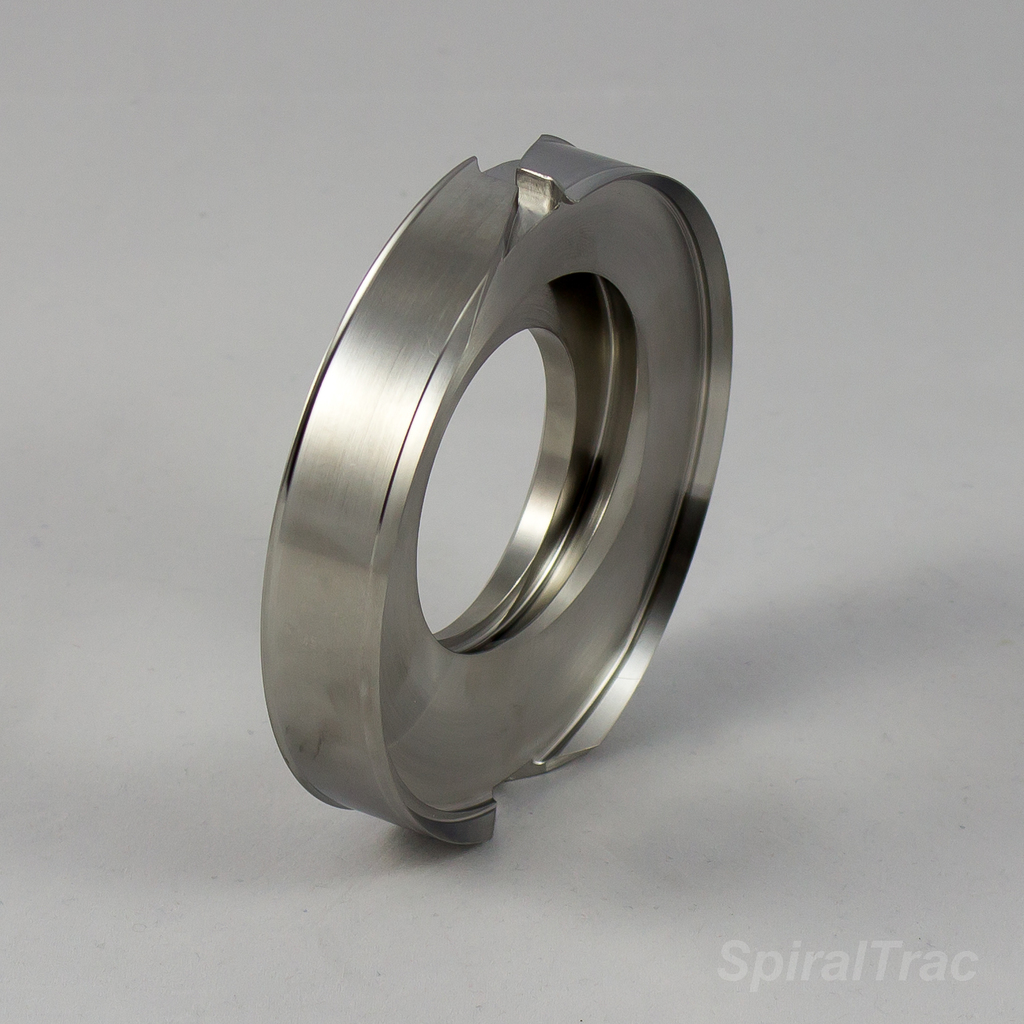

Chemical Processing Industry Device Gallery

Right Oblique-thumbnail

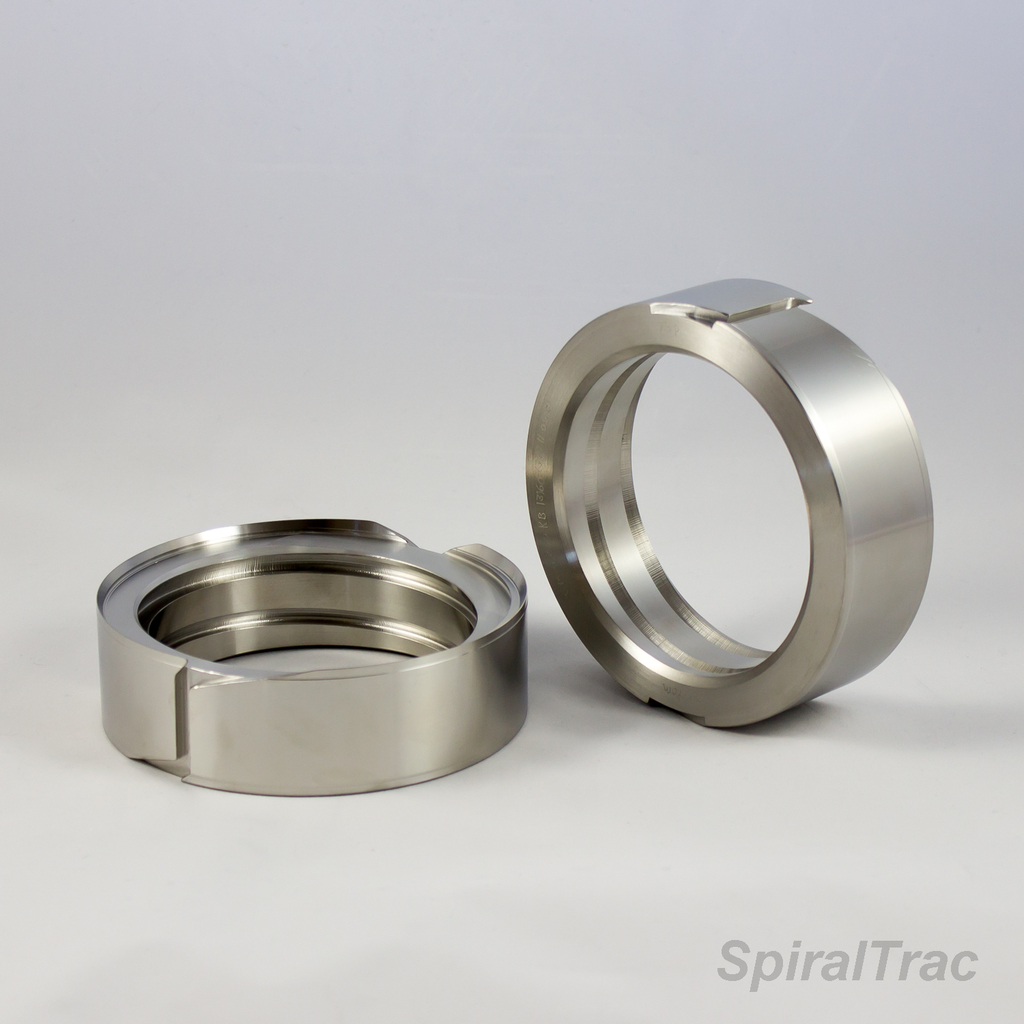

Group 1-thumbnail

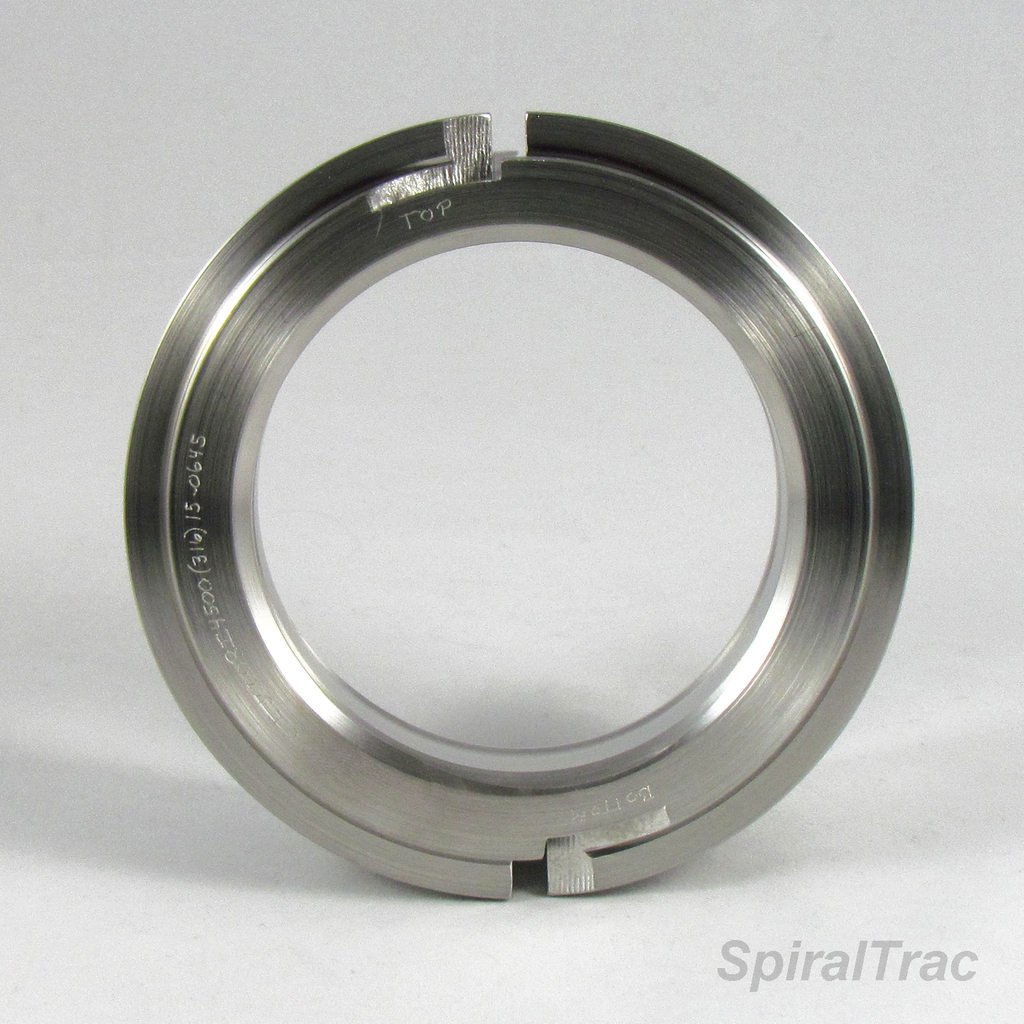

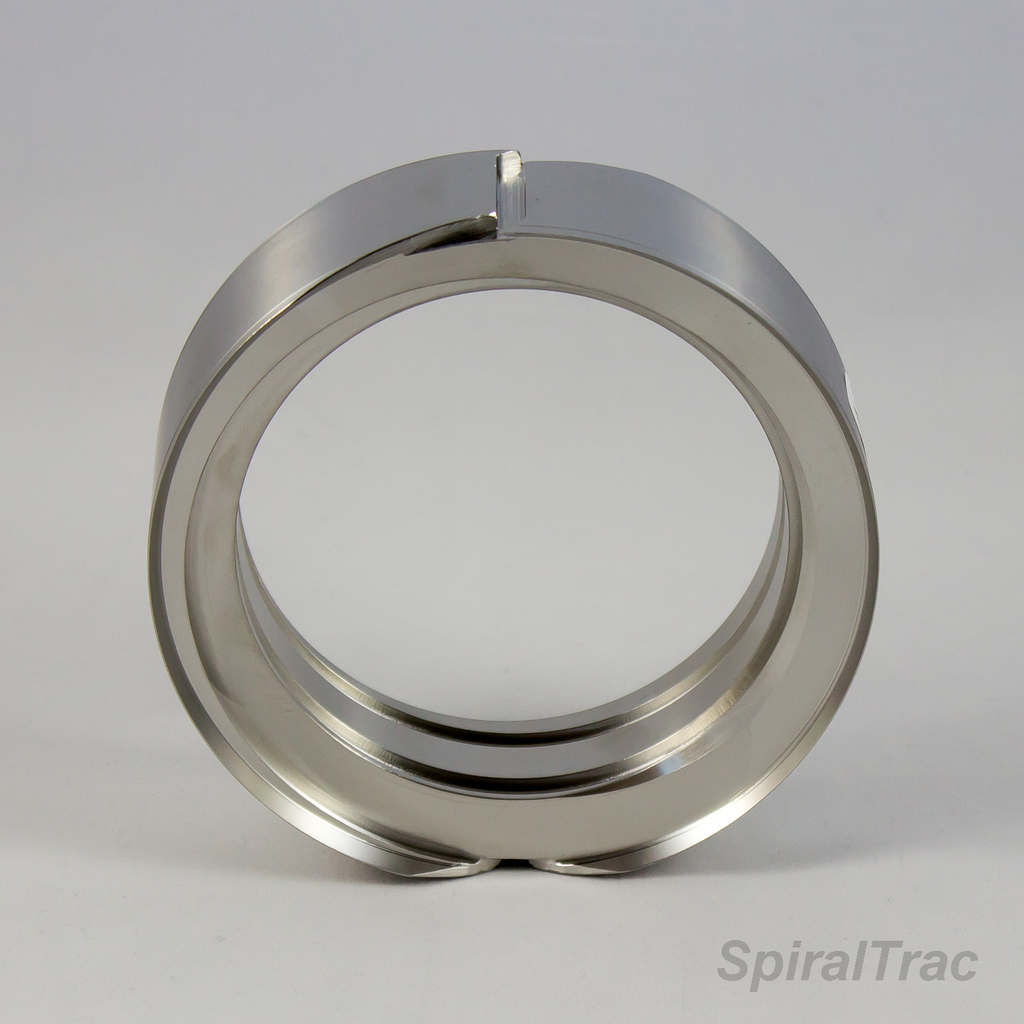

ST front-thumbnail
Right Oblique-thumbnail
Right Oblique-thumbnail
Left Oblique-thumbnail
Left Oblique-thumbnail
Right Oblique 2-thumbnail

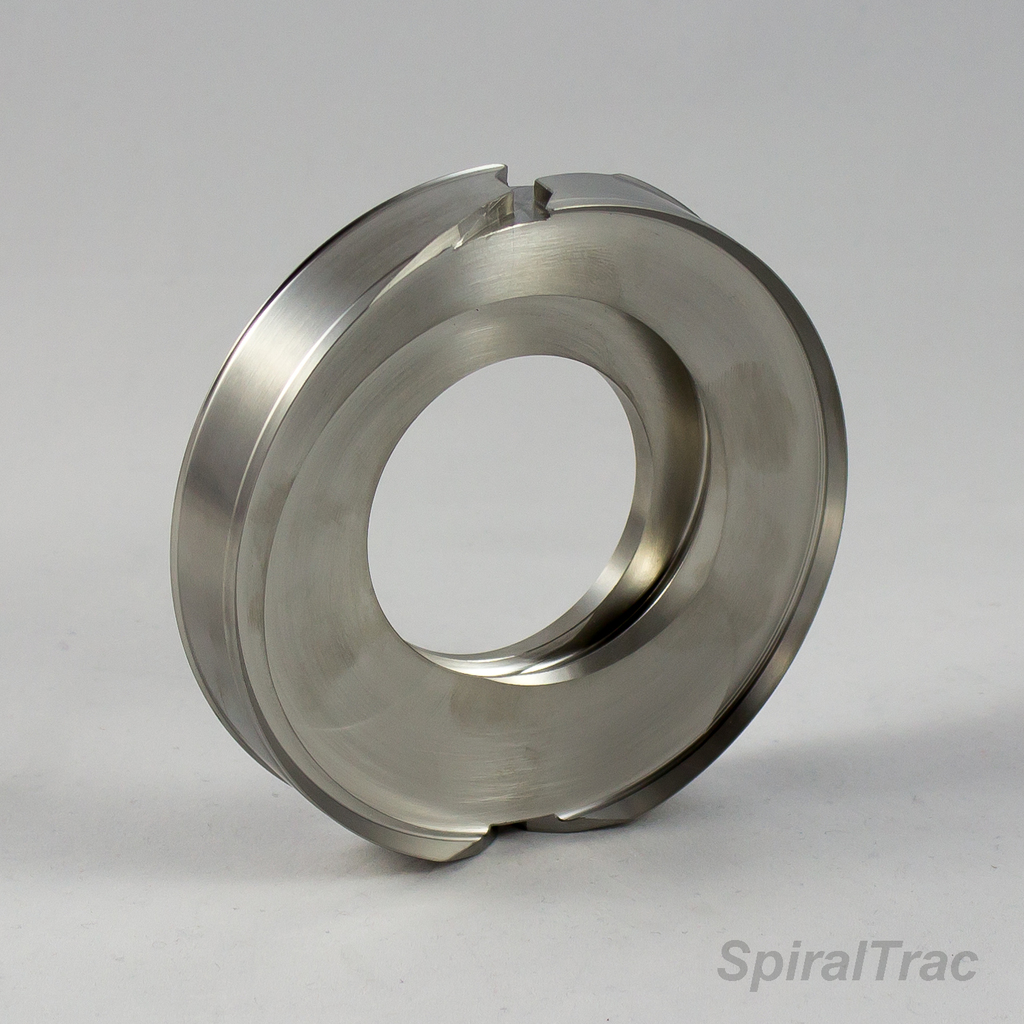

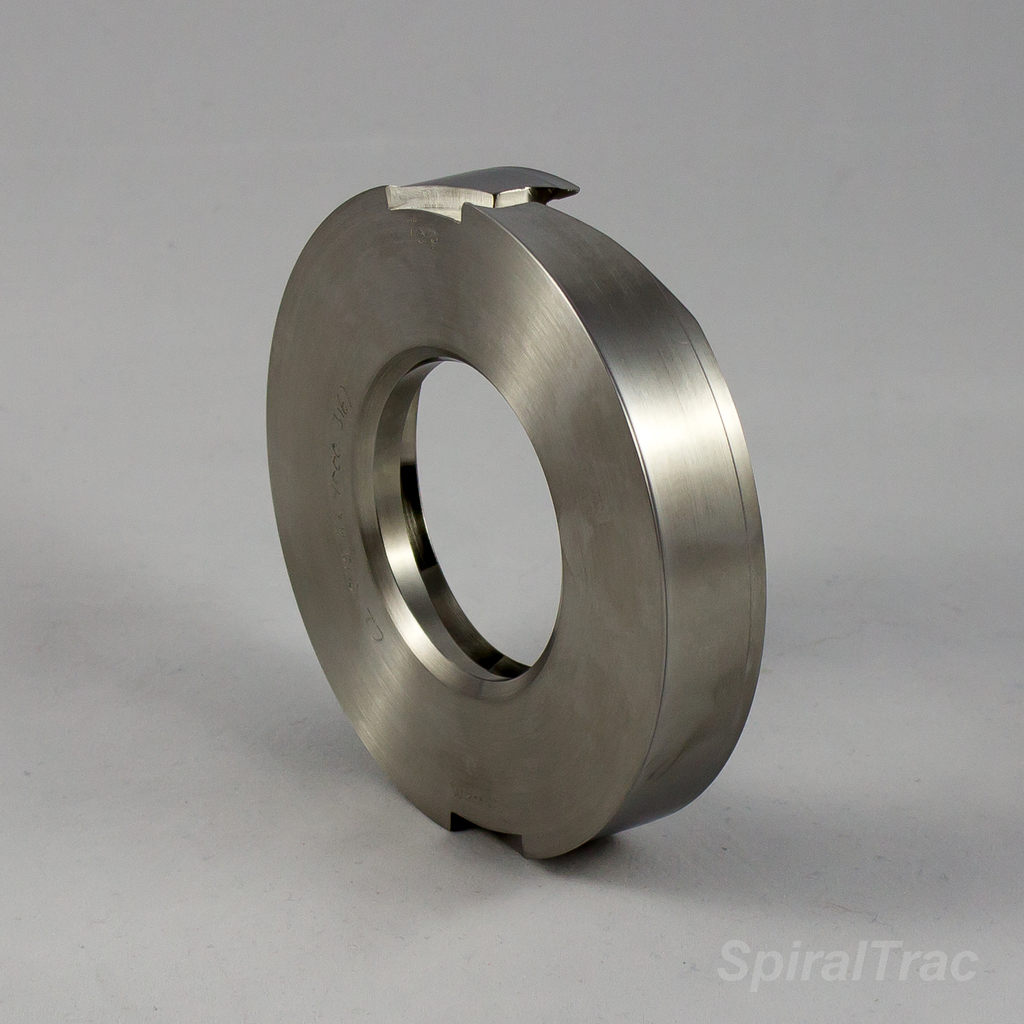

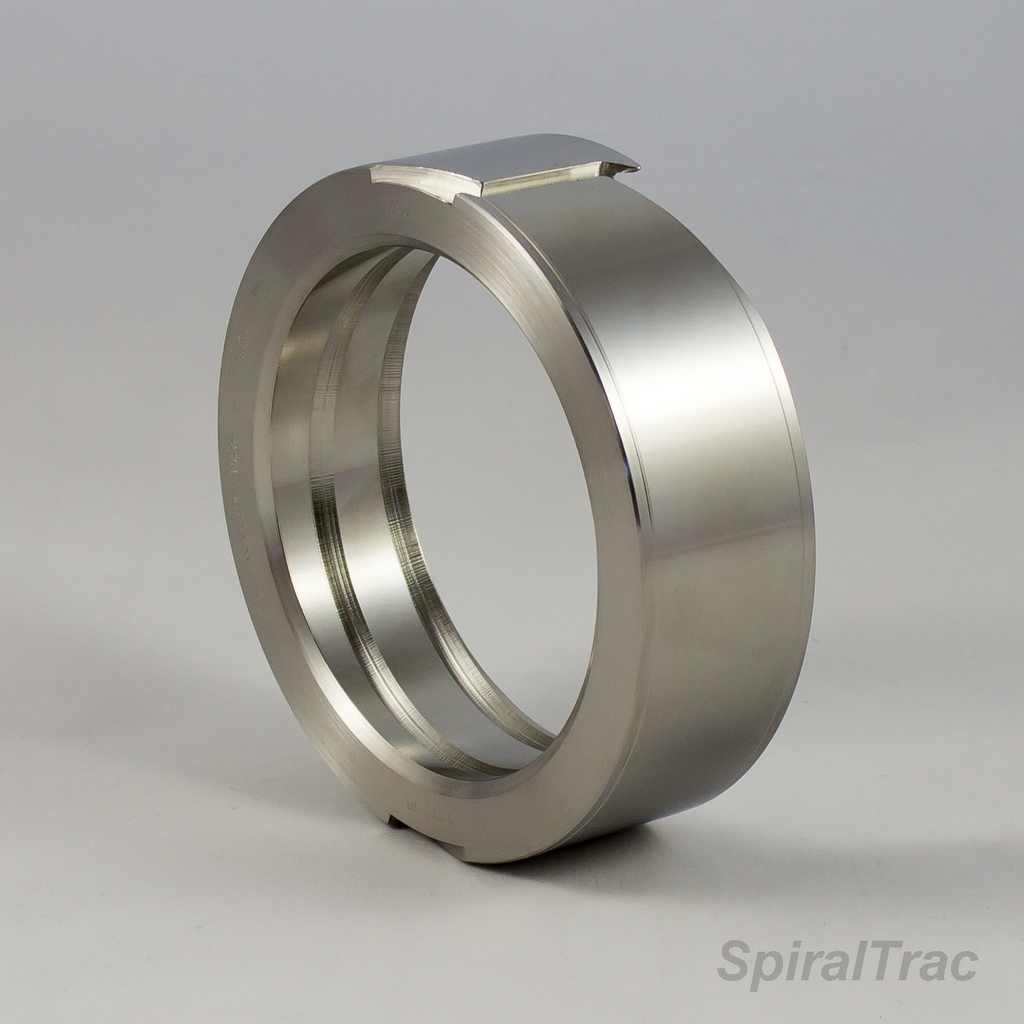

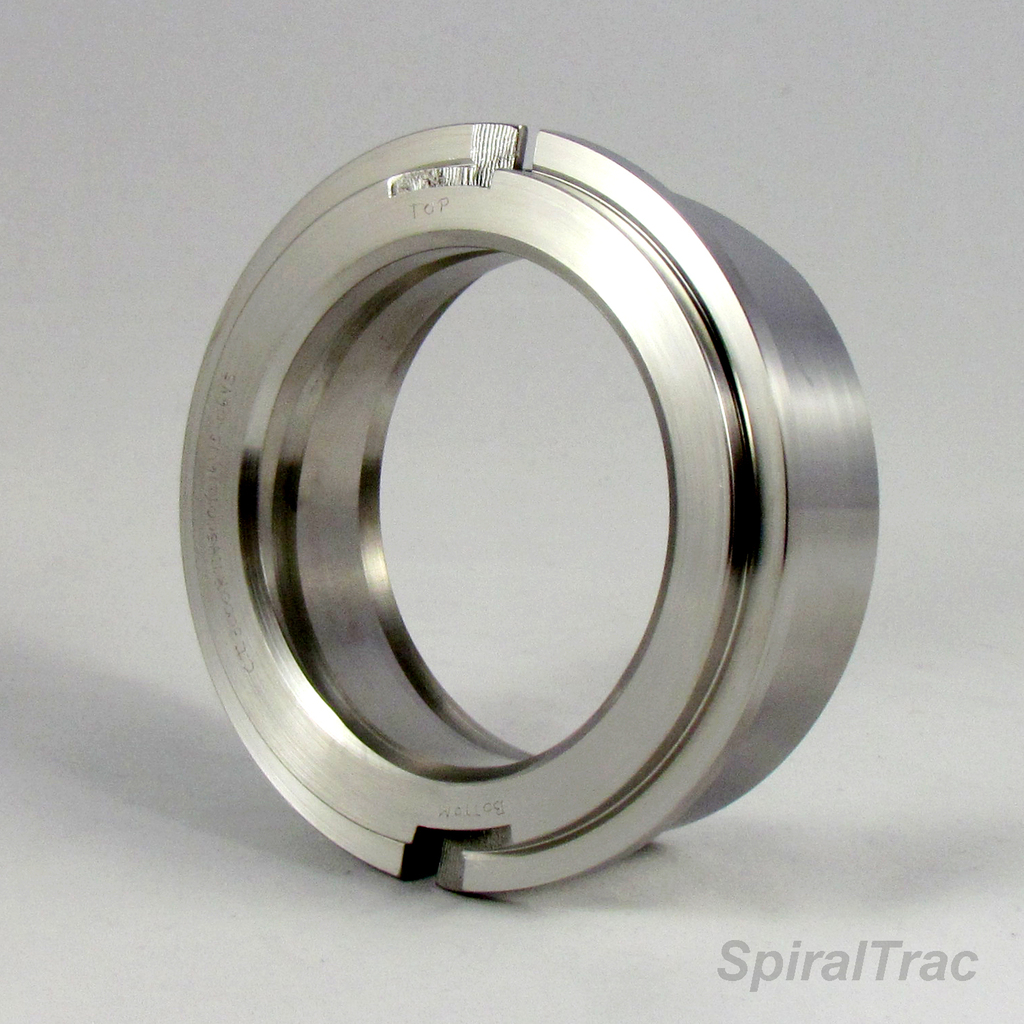

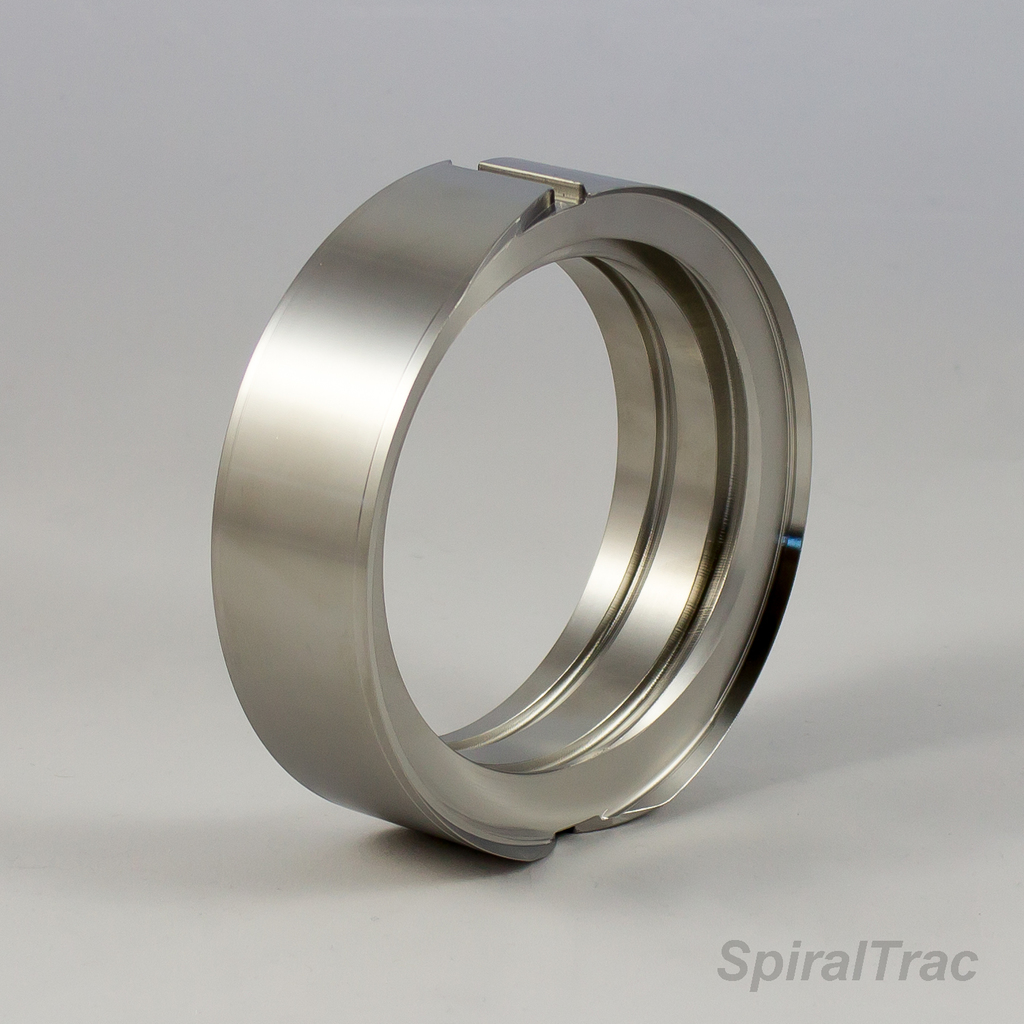

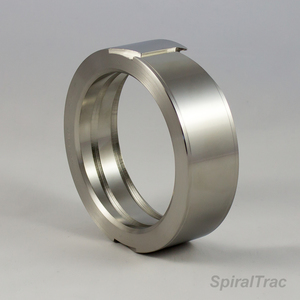

ST side-thumbnail

Material options

Learn more
