SpiralTrac™ for GOULDS® 3175 & 3196 Process Pumps
- April 27, 2020
- 2.52 Thousand
The wildly popular Goulds Process Pumps are known for their versatility and reliability. Whether it is sealed with a mechanical seal or packing, you can greatly improve your solution by incorporating the SpiralTrac Environmental Controller in your Goulds Process Pump.
Benefits
- Reduced flush rate with the use of a flow controller
- Increased MTBF
- Fewer gland adjustments (packing)
- Eliminates flush in some applications (seal)
- Eliminates seal and cavity erosion (seal)
- Reduced shaft or sleeve wear
- Controlled drip rate leakage (packing)

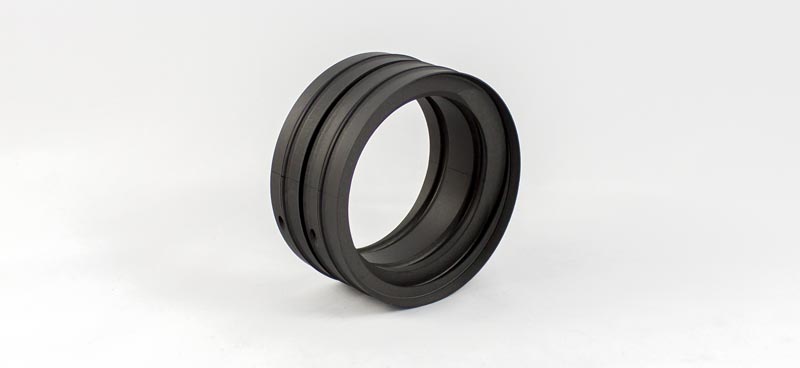

Goulds 3175 Paper Stock/Process Pump

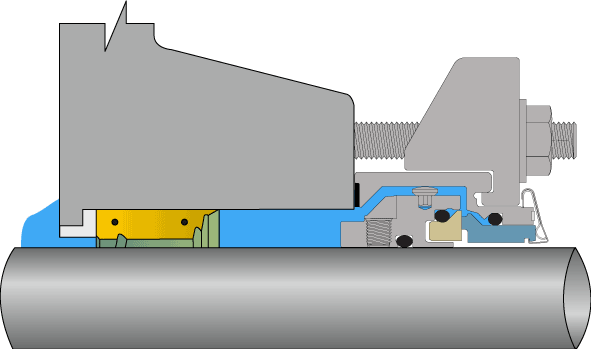

SpiralTrac Version F Type S

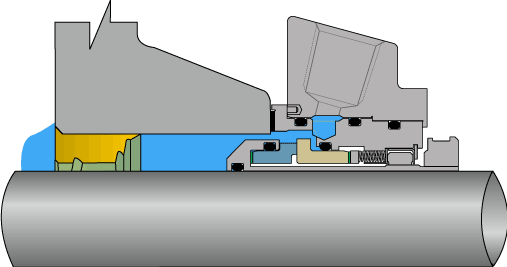

SpiralTrac Version N Type I

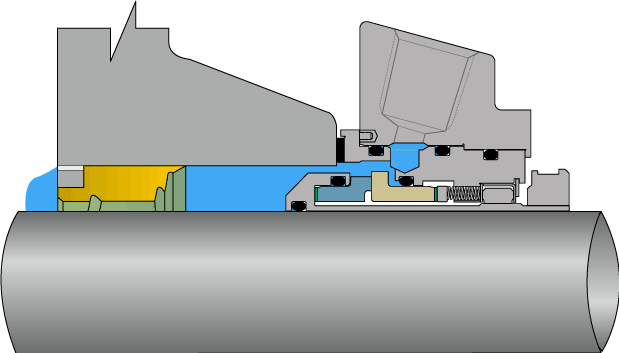

SpiralTrac Version N Type A

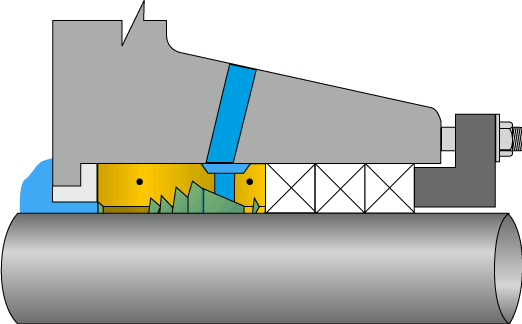

Packing Version SpiralTrac| GOULDS Model | SpiralTrac part # |
|---|---|
| 3175 S | NI3000RB4000(XXX) |
| NI3000RI4000(XXX) | |
| DI3000RI4000(XXX) | |
| CI3000RI4000(XXX) | |
| NI3000RA4000(XXX)3.500/0.625 | |
| DI3000RA4000(XXX)3.500/0.625 | |
| FI3000RS4000(XXX) | |
| PI3000RS4000(XXX)2L1.000 | |
| 3175 M | NI3750RB4750(XXX) |
| NI3750RI4750(XXX) | |
| DI3750RI4750(XXX) | |
| CI3750RI4750(XXX) | |
| NI3750RA4750(XXX)4.250/0.625 | |
| DI3750RA4750(XXX)4.250/0.625 | |
| FI3750RS4750(XXX) | |
| PI3750RS4750(XXX)2L1.000 | |
| 3175 L | NI4750RB5750(XXX) |
| NI4750RI5750(XXX) | |
| DI4750RI5750(XXX) | |
| CI4750RI5750(XXX) | |
| NI4750RA5750(XXX)5.250/0.625 | |
| DI4750RA5750(XXX)5.250/0.625 | |
| FI4750RS5750(XXX) | |
| PI4750RS5750(XXX)2L1.000 |
Please replace “XXX” with material ID for complete part # when ordering. For a full list of materials please visit our material options page.
Download SpiralTrac for GLOUDS 3175 Bulletin PDF

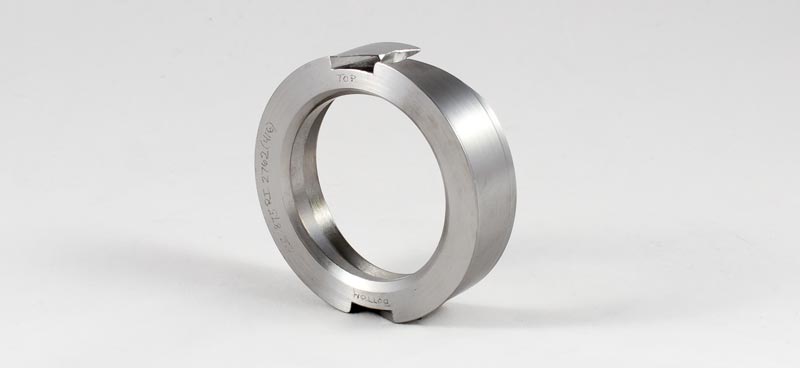

Goulds 3196 i-FRAME Process Centrifugal Pump
SpiralTrac Version F Type S
SpiralTrac Version N Type I
Packing Version SpiralTrac| GOULDS Model | SpiralTrac part # | |
|---|---|---|
| 3196 ST | Regular bore | NI1375RB2000(XXX) |
| NI1375RI2250(XXX) | ||
| DI1375RI2250(XXX) | ||
| CI1375RI2250(XXX) | ||
| FI1375RS2000(XXX) | ||
| PI1375RS2000(XXX)3L0.437 | ||
| Big bore | NI1375RI2880(XXX) | |
| DI1375RI2880(XXX) | ||
| CI1375RI2880(XXX) | ||
| Taper bore | NI1375RI3293(XXX) | |
| DI1375RI3293(XXX) | ||
| CI1375RI3293(XXX) | ||
| 3196 MT | Regular bore | NI1750RB2500(XXX) |
| NI1875RI2762(XXX) | ||
| DI1875RI2762(XXX) | ||
| CI1875RI2762(XXX) | ||
| FI1750RS2500(XXX) | ||
| PI1750RS2500(XXX)2L0.625 | ||
| Big bore | NI1875RI3500(XXX) | |
| DI1875RI3500(XXX) | ||
| CI1875RI3500(XXX) | ||
| Taper bore | NI1875RI4063(XXX) | |
| DI1875RI4063(XXX) | ||
| CI1875RI4063(XXX) | ||
| 3196 LT | Regular bore | NI2125RB2875(XXX) |
| NI2125RI2998(XXX) | ||
| DI2125RI2998(XXX) | ||
| CI2125RI2998(XXX) | ||
| FI2125RI2875(XXX) | ||
| PI2125RS2875(XXX)2L0.625 | ||
| Big bore | NI2125RI3880(XXX) | |
| DI2125RI3880(XXX) | ||
| CI2125RI3880(XXX) | ||
| Taper bore | NI2125RI4375(XXX) | |
| DI2125RI4375(XXX) | ||
| CI2125RI4375(XXX) | ||
| 3196 XLT | Regular bore | NI2500RB3375(XXX) |
| NI2500RI3468(XXX) | ||
| DI2500RI3468(XXX) | ||
| CI2500RI3468(XXX) | ||
| FI2500RS3375(XXX) | ||
| PI2500RS3375(XXX)2L0.625 | ||
| Big bore | NI2500RI4750(XXX) | |
| DI2500RI4750(XXX) | ||
| CI2500RI4750(XXX) | ||
| Taper bore | NI2500RI5200(XXX) | |
| DI2500RI5200(XXX) | ||
| CI2500RI5200(XXX) | ||
Please replace “XXX” with material ID for complete part # when ordering. For a full list of materials please visit our material options page.
Download SpiralTrac for GLOUDS 3196 Bulletin PDF
For ordering, please contact your local A.W. Chesterton representative or reach out to us.
